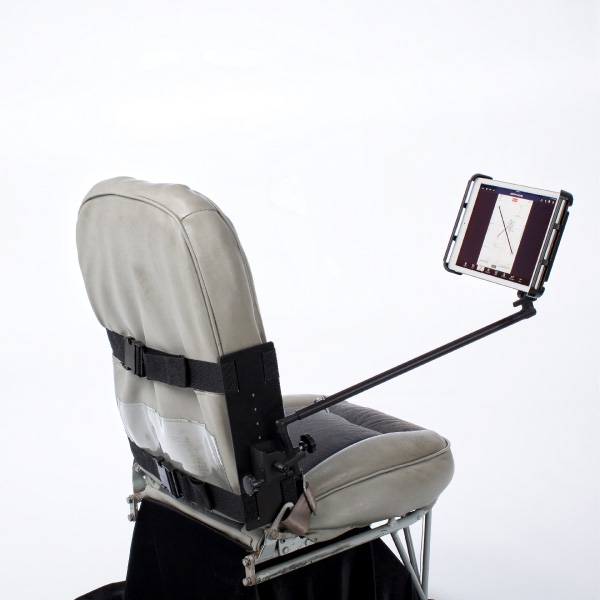

Model C Efb Caddy

The Model C EFB Caddy is an adjustable electronic flight bag (EFB) mounting caddy supplied without a tablet cradle. It is intended for operators who already have, or wish to select, a compatible cradle with the AMPS mounting-hole pattern.

The caddy provides flexible positioning through three-axis adjustment and quick-release repositioning. Its anodised-aluminium structure and seat-plate strap arrangement are designed to support a clear view of the instrument panel and outside environment while allowing unobstructed entry and exit.

• Manufacturer model: MODEL C
• Supplied without tablet cradle
• Accepts cradles with the AMPS hole pattern
• Three-axis adjustable positioning with safety stops
• Quick-release repositioning
• Anodised-aluminium structural construction
• Approximate weight: 1.1 kg
• Horizontal arm extension: approximately 490 to 720 mm
• Vertical arm movement: approximately 100 mm
• Quick-disconnect seat-plate straps: approximately 50 mm wide with 1.63 m useful length

Please confirm the selected cradle, installation arrangement and suitability for the intended aircraft before use.
