Amp 8 Pin Female Cpc Bulk Head Base Plug 11 Shell

Image for illustration only. It may show a product series rather than the exact product offered.

Amp 8 Pin Female Cpc Bulk Head Base Plug 11 Shell

https://www.roctexo.com/web/image/product.template/40610/image_1920?unique=b2d4b73
Part numbers : RX1-11-13878 , 206433-1 , 11-13878
Unit of Measure: EA

8.40 EUR / EA 8.4 EUR 8.40 € excl. VAT

8.40 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 2 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 5 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
4 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

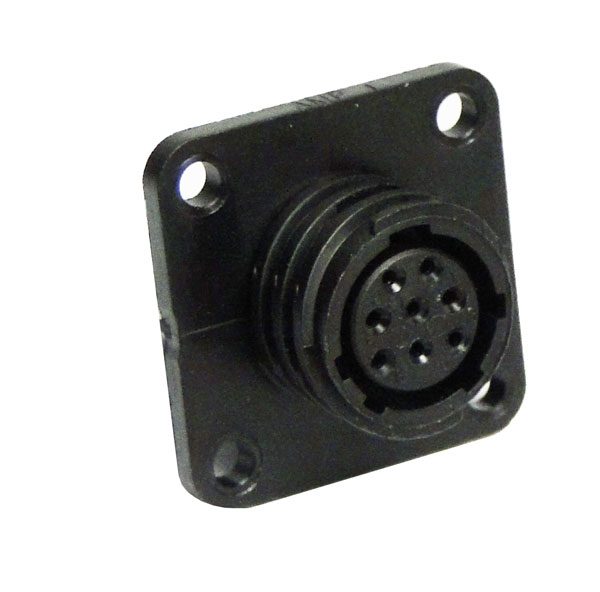

The TE Connectivity AMP Circular Plastic Connector (CPC) receptacle housing, part number 206433-1, is an 8-position, shell size 11 connector housing for wire-to-panel installations. This black thermoplastic receptacle features a flange with mounting holes for panel mounting and keyed alignment with threaded coupling retention.

  • Manufacturer part number: 206433-1
  • Series: AMP Circular Plastic Connectors (CPC), Series 2
  • Configuration: 8 signal positions, socket / reverse-gender receptacle
  • Shell size: 11
  • Mounting: Panel mount with flange and mounting holes
  • Housing: Black thermoplastic, straight body orientation
  • Electrical rating: up to 250 VAC / 250 VDC; maximum contact current rating 7.5 A
  • Operating temperature range: -55 °C to +105 °C
  • Sealing: Non-sealable

This item is a connector housing. Contacts and associated accessories should be selected separately as required for the installation.

For manufacturer drawings, CAD files and product documentation, refer to the TE Connectivity product page for 206433-1.
