SPT 6 Terminal Grounding Block

https://www.roctexo.com/web/image/product.template/40601/image_1920?unique=3d017bb
Part numbers : RX1-11-13347 , SPTGB6 , 11-13347
Unit of Measure: EA

49.10 EUR / EA 49.1 EUR 49.10 € excl. VAT

49.10 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 23 EA ready to ship on Thursday 2026-09-03
Order before 15:30 CET Tomorrow
Up to 37 EA ready to ship on Monday 2026-09-07
Order before 15:30 CET Tomorrow
64 EA available on request, fees apply
Special order from vendor stock.

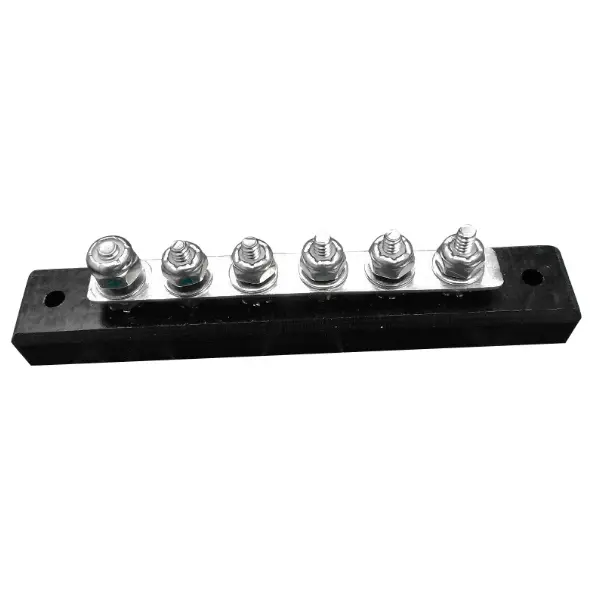

The Superior Panel Technology SPTGB6 is a compact six-terminal grounding block, terminal block and bus bar for organised electrical ground connections.

  • CNC-machined UHMW high-density plastic body
  • Nickel-plated copper bus bar
  • Supplied with stainless-steel mounting hardware, including nylon locking washers, flat washers and locking washers
  • Six terminal screws: five 6-32 screws and one larger 8-32 screw for the incoming ground connection
  • Each screw can accommodate up to four ring terminals when installed back-to-back
  • Approximate overall dimensions: 108 x 19 mm

Manufacturer part number: SPTGB6.

For assembly information, see the manufacturer installation instructions (PDF).

Contact Us

Terms and Conditions

Share

Overview

Grounding Block/Terminal Block/Buss Bar

This compact, high quality grounding block is CNC machined out of UHMW high density plastic and is manufactured by Superior Panel Technology. It comes complete with a nickel-plated copper buss bar and stainless steel nuts with nylon lock washers, stainless steel flat and locking washes and 6 stainless steel screws (5 are 6/32 screws and one is 8/32 for the incoming ground/power). Each screw can accept up to four ring terminals by placing them back to back (see picture). Overall dimension is 4.25" long by .75 wide.
