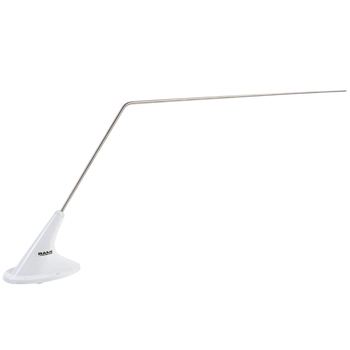

RAMI AV-17 COMM Antenna TSO

Image for illustration only. It may show a product series rather than the exact product offered.

RAMI AV-17 COMM Antenna TSO

https://www.roctexo.com/web/image/product.template/114445/image_1920?unique=6880b29
Part numbers : RX1-11-12700 , AV-17 , 11-12700
Unit of Measure: EA

274.43 EUR / EA 274.43 EUR 274.43 € excl. VAT

274.43 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 34 EA ready to ship on Monday 2026-09-28
Order before 17:00 CET Tomorrow
44 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The RAMI AV-17 is a low-profile airborne VHF communications antenna designed for underside aircraft mounting. Its four-bolt mounting base and omnidirectional, vertically polarised radiation pattern support air-to-ground communications installations.

  • Manufacturer part number: AV-17
  • Application: airborne communications
  • Frequency range: 118–137 MHz
  • Impedance: 50 Ohm nominal
  • VSWR: 3.0:1 maximum
  • Polarisation: vertical
  • Radiation pattern: omnidirectional
  • Connector: BNC female
  • RF power capacity: 30 W
  • Maximum height: approximately 229 mm
  • FAA TSO: C37d and C38d

Manufacturer documentation is available for the AV-17, including the product data sheet, footprint drawing, outline drawing, installation instructions and FAA TSO authorisation. Verify installation, interface and approval requirements against the applicable aircraft documentation and approved maintenance data.

Contact Us

Terms and Conditions

Share

Overview

The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and a low profile configuration that makes it ideal for helicopters and low-wing aircraft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph.


Specifications

  • Application: Airborne Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 3.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 8 oz
  • Max Height: 8-3/4"
  • RF Power Capacity: 25 Watts
