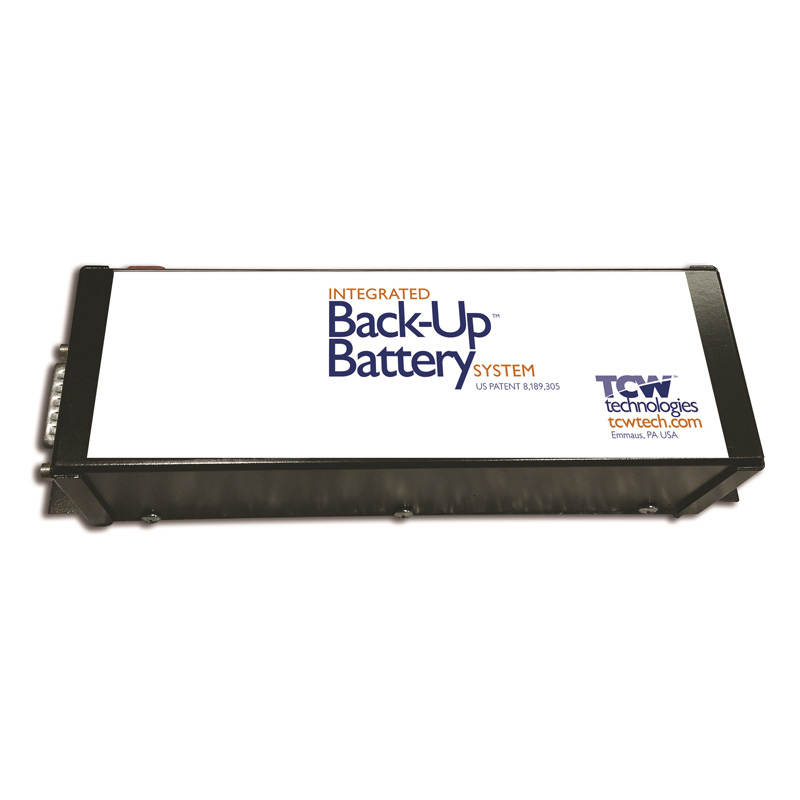

TCW Integrated Back Up Battery System 6Ah

The TCW Technologies Integrated Back-up Battery System (IBBS), part number IBBS-12V-6AH, is a 12 V, 6 Ah lithium-iron-phosphate (Li-Fe-PO4) back-up power system designed to support an aircraft endurance bus for critical electronic loads.

The unit integrates a Li-Fe-PO4 battery pack, matched charging system and switching logic in one enclosure. It connects to the aircraft power bus and provides a stable back-up power output during normal and emergency operating conditions. TCW states that the system also provides surge and voltage-sag protection for connected equipment during engine starting.

• Manufacturer part number: IBBS-12V-6AH
• Nominal system: 12 V DC
• Battery capacity: 6 Ah
• Battery chemistry: internal sealed Li-Fe-PO4
• Input voltage: 13–15 V DC
• Pass-through current: 8 A continuous; 12 A peak for up to 30 seconds
• Back-up output: 10–14 V DC
• Back-up output current: 8 A continuous; 12 A peak for up to 30 seconds
• Integral fast charger and switching circuitry

This product is the non-certified IBBS-12V-6AH variant. It is not EASA/FAA approved; assess installation suitability and applicable airworthiness requirements before use.

Manufacturer documentation: IBBS-12V-6AH installation instructions.
