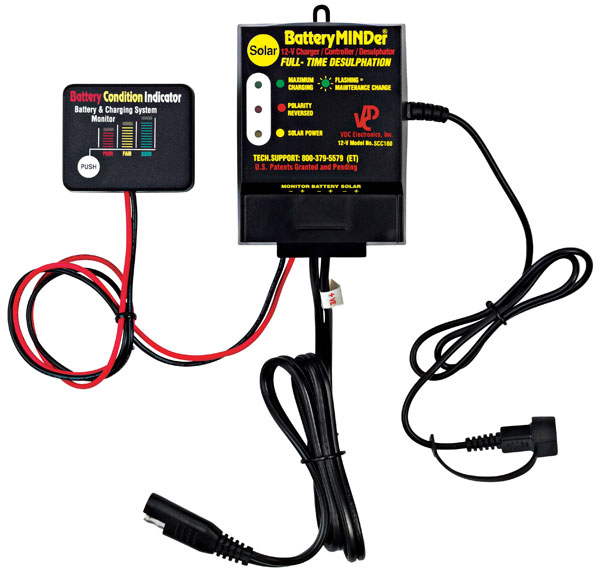

BatteryMINDer Solar 12-V 15A Charger

The BatteryMINDer® SCC-180 is a solar controller, charger-maintainer and desulfator for 12 V lead-acid battery systems. It monitors battery voltage and temperature during solar operation and adjusts charging output accordingly.

Designed for use with 12 V solar systems, the SCC-180 accepts solar panels rated up to 200 W, with panel voltage not exceeding 25 V. Its temperature-compensated maintenance function and high-frequency pulse desulfation are intended to support long-term battery care.

• Manufacturer part number: SCC180
• 12 V system voltage
• 16 A charging current
• For 12 V lead-acid batteries, including flooded, VRLA/SLA, gel and AGM types
• Compatible with solar panels up to 200 W and a maximum of 25 V
• Temperature compensation for charging and maintenance
• High-frequency pulse desulfation function
• Short-circuit, spark and reverse-polarity protection
• Weather-tight enclosure; for outdoor use, mount vertically with cables exiting downward, in accordance with the manufacturer’s instructions

Confirm the battery type, solar-panel characteristics and installation requirements before use. This product is not described by the manufacturer as an aircraft-specific charging unit; suitability for a particular aircraft installation must be determined by the installer and applicable maintenance data.

Manufacturer documentation: BatteryMINDer SCC-180 instruction manual.
