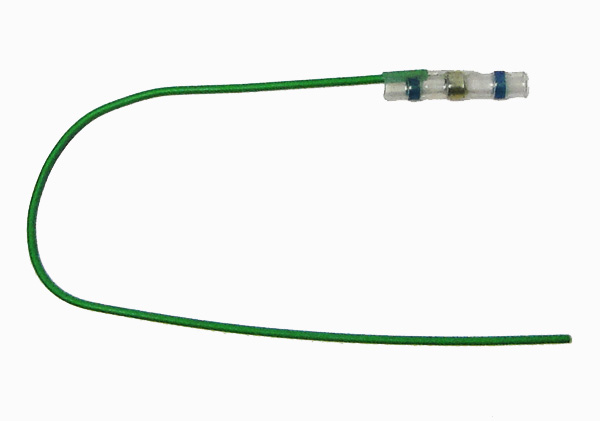

Single Conductor 1/8 Solder Sleeve With Pigtail

Single Conductor 1/8 Solder Sleeve With Pigtail

https://www.roctexo.com/web/image/product.template/9172/image_1920?unique=99a391e
Part numbers : RX1-11-12363 , CWT-3-W122-5 , 11-12363
Unit of Measure: EA

3.37 EUR / EA 3.37 EUR 3.37 € excl. VAT

3.37 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 116 EA ready to ship on Monday 2026-08-17
Order before 17:00 CET Tomorrow
Up to 573 EA ready to ship on Thursday 2026-08-20
Order before 17:00 CET Tomorrow
2,244 EA available on request, fees apply
Special order from vendor stock.

The TE Connectivity RAYCHEM CWT-3-W122-5 is a SolderSleeve shield terminator with a pre-installed lead. It is supplied as a single-conductor 1/8 in (3.0 mm expanded inside diameter) solder sleeve for 22 AWG (0.34 mm²) wire applications.

  • Manufacturer part number: CWT-3-W122-5
  • Series: RAYCHEM CWT SolderSleeve
  • Pre-installed lead for shield termination
  • Expanded inside diameter: 3.0 mm minimum
  • Recovered inside diameter: 1.02 mm maximum
  • Wire size: 22 AWG (0.34 mm²)
  • Maximum operating temperature: 125 °C
  • Unit of measure: each

Suitable for electrical harness work where a compact solder-sleeve shield termination with an integral lead is specified. Confirm the applicable wiring documentation and installation requirements before use.

Manufacturer product information and dimensional drawing
