Micropulse Landing Light Control 9100-001-M

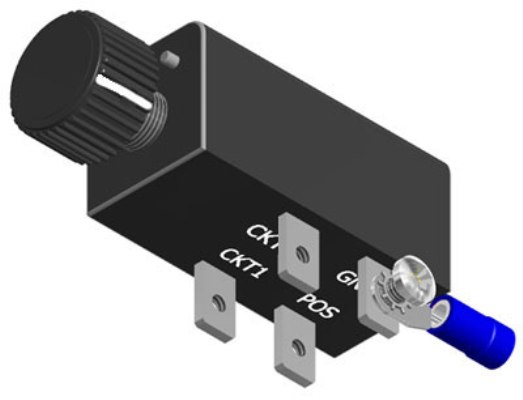

The Seaton Engineering MicroPulse 9100-001-M is a compact solid-state, dual-channel landing-light controller with ring-terminal connections. It provides selectable steady and pulsing lighting modes from a single panel-mounted control.

Designed for landing- or taxi-light control, the unit offers independent left and right circuit selection, both-circuits-on operation, and Wig-Wag/flash modes. The manufacturer specifies a 5–35 VDC input range and up to 10 A per circuit.

• Manufacturer part number: 9100-001-M
• Dual-channel lighting controller with ring-terminal connectors
• Selectable modes: off; left circuit; right circuit; both circuits; alternating 44, 88 or 120 pulses per minute; and simultaneous flashing at 44 pulses per minute
• Controlled output: 0–5/35 VDC; maximum 10 A per circuit
• Capacity per circuit: up to 120 W at 12 VDC, 240 W at 24 VDC, or 280 W at 28 VDC
• Operating temperature: -10 °C to +70 °C
• Internal temperature protection at +85 °C
• Manufacturer documentation lists DO-160E EMI

Supplied installation items are stated by the manufacturer to include the MicroPulse controller, installation instructions, insulated ring terminals, mounting hardware, panel placards, knob, drill guide and Allen wrenches.

Approval status: not EASA/FAA approved. Installation and use should be assessed by appropriately qualified personnel in accordance with the applicable aircraft configuration and maintenance requirements.

Relevant documentation: Seaton Engineering MicroPulse 9100-001-M installation instructions.
