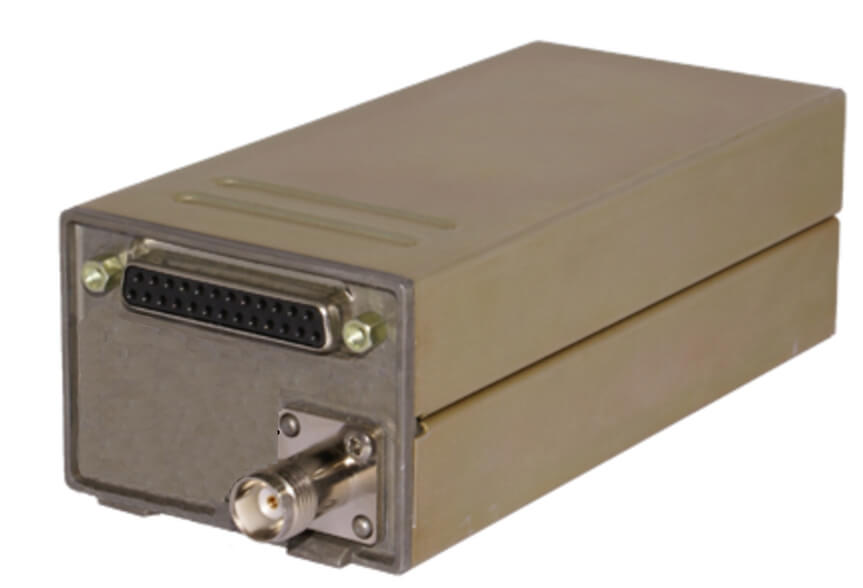

EFIS Mode Small Es Class 1 Transponder Option

Image for illustration only. It may show a product series rather than the exact product offered.

EFIS Mode Small Es Class 1 Transponder Option

https://www.roctexo.com/web/image/product.template/23303/image_1920?unique=5aa1c45
Part numbers : RX1-11-11798 , 74109 , 11-11798
Unit of Measure: EA

2233.48 EUR / EA 2233.48 EUR 2,233.48 € excl. VAT

2233.48 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Dynon/Advanced Flight Systems SV-261, manufacturer part number 74109, is a remote-mounted Class 1 Mode S transponder option designed for control through an Advanced Flight Systems AF-5000 EFIS. Its remote installation can help preserve instrument-panel space while placing transponder control and annunciation on the EFIS display.

The unit supports conventional Mode A/C and Mode S surveillance replies, plus 1090 MHz Extended Squitter (1090ES) ADS-B Out capability. ADS-B Out functionality requires an appropriately approved and configured GPS position source as part of the aircraft installation.

  • Manufacturer part number: 74109
  • Dynon/AFS SV-261 Mode S transponder
  • Class 1 nominal RF output: 250 W
  • Operating input: 14 V or 28 V nominal DC systems
  • AF-5000 EFIS on-screen control
  • Stated approvals: ETSO-C112b, ETSO-C166a, FAA TSO-C112c and TSO-C166b

Installation, configuration and continued airworthiness must be performed in accordance with the applicable manufacturer documentation and aircraft approval basis.

Documentation: AF-5000 Installation Manual.
