Aveo Redbaron Xp Red Galactica

Image for illustration only. It may show a product series rather than the exact product offered.

Aveo Redbaron Xp Red Galactica

https://www.roctexo.com/web/image/product.template/20423/image_1920?unique=53e1f54
Part numbers : RX1-11-11554 , AVE-RBXPR-001 , ASS-11-11554 , 11-11554
Unit of Measure: EA

1021.20 EUR / EA 1021.2 EUR 1,021.20 € excl. VAT

1021.20 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

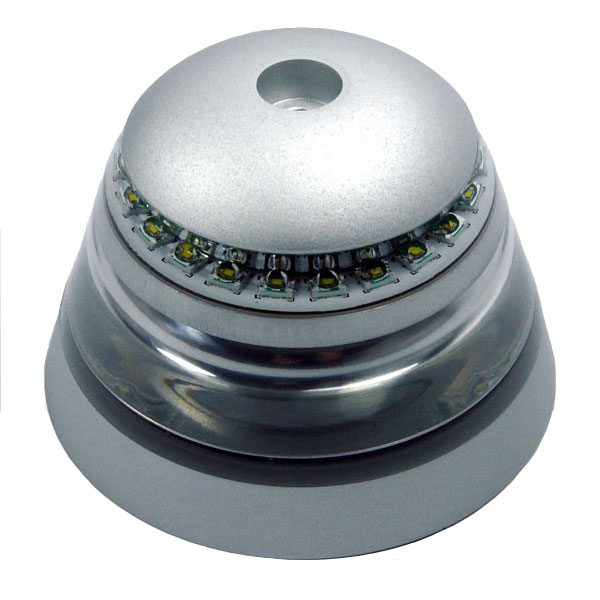

The Aveo Engineering RedBaron XP Galactica Red is a compact LED anti-collision light, manufacturer part number AVE-RBXPR-001. It uses a 40-LED array with Aveo reflector optics and an internal electronic strobe circuit.

  • Red LED anti-collision light
  • Operating voltage: 9–36 VDC
  • Red-strobe input current: 4.14 A at 14 VDC; 2.31 A at 28 VDC
  • Red-strobe input power: 57.96 W at 14 VDC; 64.68 W at 28 VDC
  • Flash rate: 50 cycles per minute
  • Dimensions: 64 × 64 × 39.8 mm
  • Weight: 0.145 kg
  • Ambient operating temperature: −55 °C to +85 °C
  • Synchronisation connection for compatible AveoFlash lights
  • Under-voltage, over-voltage, transient-voltage and overheat protection

According to Aveo Engineering’s installation documentation, the unit meets the minimum performance and quality-control standards of ETSO-C96a; installation requires separate approval. The documentation also notes an EASA-authorised deviation relating to the use of newer SAE AS8017B and RTCA DO-160E/F revisions.

Installation, wiring, mounting and inspection requirements should be verified against the applicable aircraft data and the manufacturer’s RedBaron XP Galactica installation manual.
