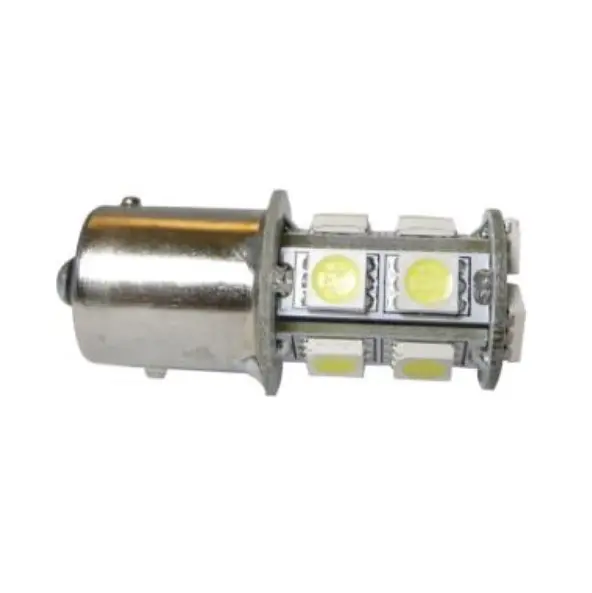

Aircraft Wingtip Nav Light 4W-A-1512

Aircraft Wingtip Nav Light 4W-A-1512

https://www.roctexo.com/web/image/product.template/126549/image_1920?unique=e9db4fa

Part Number(s): 11-11369, BAY15SWCS-4W-A-1512

31.14 € 31.14 EUR 31.14 € Tax Excluded

336.55 kr Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions

Share

Unit of Measure Name: Units
Internal Reference: RX1-11-11369

Overview

Note: For Experimental aircraft use only. Not FAA/PMA Approved.

NavStrobe Aircraft Wingtip Nav Light 4W-A-1512

Rapco Equivalent: 1512,7079B-12,7512-12

Emitter Type: SMD 5050
  • Total Emitters: 13
  • Power: 4W
  • Color BIN: White
  • Draws <400ma @ 14.2VDC
  • Luminous Flux: 1310LM (0 degrees), 520LM (90 degrees)
  • Color Temperature: 2700k (Aviation White)
  • 2 modes: constant & fast strobe
  • Base Type: BAY15s = Single contact with single pin. (A-1512)
  • Application: Wingtip Navigation Light replacement.
  • Contains 1 light bulb per pack
Rated Voltage: 8-28VDCDimensions: 1.73 in x 0.60 in (4.4 cm x 1.5 cm)
Weight: 0.32 oz (9 g)

Turn on first: Constant lighting / Turn on second time <3s: Fast Strobe. Switch between modes in fog/cloud etc

Application Info:
  • NavStrobe Wingtip Bulbs: Will replace the following commonly installed bulbs: W1290-14, W1290-28, T7572-12V, T7572-24V, or any BAY15S base lamp. See "Dimensional Drawing" tab to confirm dimensions will work with currently installed bulb on your aircraft.

Dimensional Drawing


Videos


"NavStrobe Lighting " LED lights
