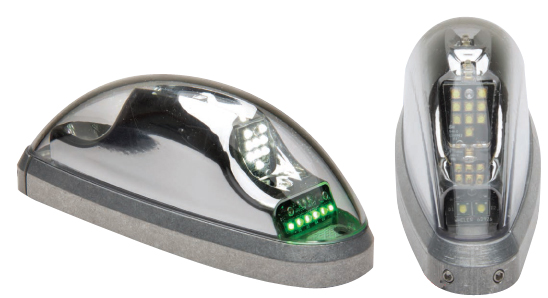

Whelen Orion 600 28V Wingtip Pta Green OR6002G

Whelen Orion 600 28V Wingtip Pta Green OR6002G

https://www.roctexo.com/web/image/product.template/85423/image_1920?unique=99a391e
Part numbers : RX1-11-11367 , 01-0771733-11 , 11-11367
Unit of Measure: EA

684.92 EUR / EA 684.92 EUR 684.92 € excl. VAT

684.92 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 11 EA ready to ship on Monday 2026-08-17
Order before 17:00 CET Tomorrow
Up to 37 EA ready to ship on Thursday 2026-08-20
Order before 17:00 CET Tomorrow
34 EA available on request, fees apply
Special order from vendor stock.

The Whelen ORION600 OR6002G is a self-contained LED wingtip position/anti-collision lighthead for 28 V DC aircraft electrical systems. This green-position configuration combines an aviation-green position light with a white anti-collision light in a compact wingtip-mounted assembly.

Designed for retrofit or new-installation applications where the specified ORION600 configuration is required, the unit incorporates its lighting electronics within the lighthead, eliminating the need for an external flasher box. A clear, hard-coated polycarbonate outer lens is field replaceable.

  • Manufacturer part number: 01-0771733-11
  • Model: OR6002G
  • Supply voltage: 28 V DC
  • Position-light colour: aviation green
  • Anti-collision-light colour: aviation white
  • Mounting: wingtip
  • Approximate dimensions: 52 mm high x 45 mm wide x 144 mm long
  • Weight: approximately 0.18 kg
  • Source-listed environmental standard: RTCA/DO-160G
  • Source-listed FAA technical standard references: TSO-C96c Class II and TSO-C30c Type II & III

Please verify the required part number, voltage, installation arrangement and applicable airworthiness approval basis before purchase and installation.
