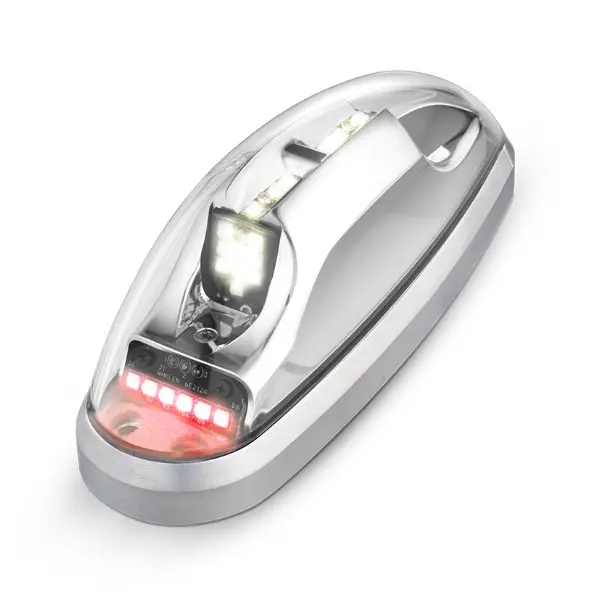

Whelen Orion 600 12V Wingtip Pta Red OR6001R
Part numbers
:
RX1-11-11366
, 01-0771733-02
, 11-11366
Unit of Measure:
EA
| Whelen # | Model # | Description | Color | Voltage | Part # |
|---|---|---|---|---|---|
| 01-0771733-02 | OR6001R | Orion Wingtip PTA | Red | 14V | 11-11366 |
Overview
| ORION600 Series of FAA/TSO approved LED aviation lighting. Incorporating the latest state of the art LED Technology available in an all-inclusive package, the ORION600 series eliminates the need for external flasher boxes. Flush mountable for a wide variety of applications with minimal integration and easily retrofitable to the Whelen legacy strobe products. The ORION600 series is quite simply the brightest form of LED Anti-collision and Position lighting available. Model ORION600 Position/Anti-Collision Lighthead All LED self-contained wingtip mounted Position/Anti-Collision system. Eliminates the need for external power supplies and reduces current draw and provides thousands of hours of operation. FAA TSO-C96c Class II / TSO-C30c Type II & III |
Features
- Fully FAA/TSO-C96a & TSO-C30c approved
- FAR SPEC Certified
- Replaceable hard coated polycarbonate lens to maintain maximum light output
- No RF emissions
- Aerodynamic design without sacrificing light output
- Exceeds FAA minimum intensity requirements for maximum visibility and increased safety of flight
- Environmentally tested and certified to RTCA/DO-160G standards
Specifications
- Weight 0.4 lbs.(181gm)
- Dimensions H x W x L 2.04” (52mm) x 1.78” (45mm) x 5.65” (144mm)
- Volts 12 VDC 28 VDC
- Position LED colors Aviation Red Aviation Green
- Anti-Collision LED color Aviation White
- Lenses Clear Polycarbonate Hardcoat, Field Replaceable
Far Spec
- A Technical Standard Order (TSO) is a minimum performance standard and does equal compliance with the applicable Federal Aviation Regulations. In fact other manufacturers produce TSO approved items with operational characteristics that conflict with the FARs. Whelen designs products as FAR-SPEC, Federal Aviation Regulations – Specified Lighting. FAR-SPEC is compliant with all applicable FAR’s making your installation legal.
- Installers must follow the approved guidance for installation of the product to be FAR-SPEC compliant
