Sandia Sa 24 Diode Isolation Module

Image for illustration only. It may show a product series rather than the exact product offered.

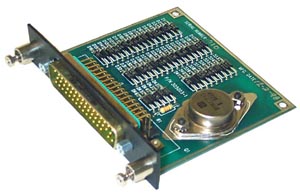

Sandia Sa 24 Diode Isolation Module

https://www.roctexo.com/web/image/product.template/27074/image_1920?unique=dbf081d
Part numbers : RX1-11-11318 , 305003-01 , 11-11318
Unit of Measure: EA

571.22 EUR / EA 571.22 EUR 571.22 € excl. VAT

571.22 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Sandia Aerospace SA 24 is a MARC 70 diode isolation module, manufacturer part number 305003-01. It provides 23 diode ground-in/ground-out isolation lines for avionics interface installations.

  • 23 diode isolation lines
  • Internal FET circuit for simultaneous grounding of all lines during indicator testing
  • Test circuit requires 28 VDC and may be activated by a grounded control line or a 28 VDC pull-up
  • Designed for installation in Sandia Aerospace SRU 1, SRU 5 or SRU 10 MARC 70 enclosures
  • Manufacturer describes MARC 70 units as PMA approved; confirm installation, airworthiness and release requirements with the applicable approved data and maintenance documentation

For installation details, connector pinout and wiring information, consult the Sandia Aerospace MARC 70 Installation Manual. Additional product information is available in the MARC 70 brochure and specification sheet.
