Rac Stick Grip Model G5

Rac Stick Grip Model G5

https://www.roctexo.com/web/image/product.template/80981/image_1920?unique=99a391e
Part numbers : RX1-11-09920 , G205 , 11-09920
Unit of Measure: EA

170.98 EUR / EA 170.98 EUR 170.98 € excl. VAT

170.98 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 8 EA ready to ship on Monday 2026-08-17
Order before 17:00 CET Tomorrow
Up to 18 EA ready to ship on Thursday 2026-08-20
Order before 17:00 CET Tomorrow
15 EA available on request, fees apply
Special order from vendor stock.

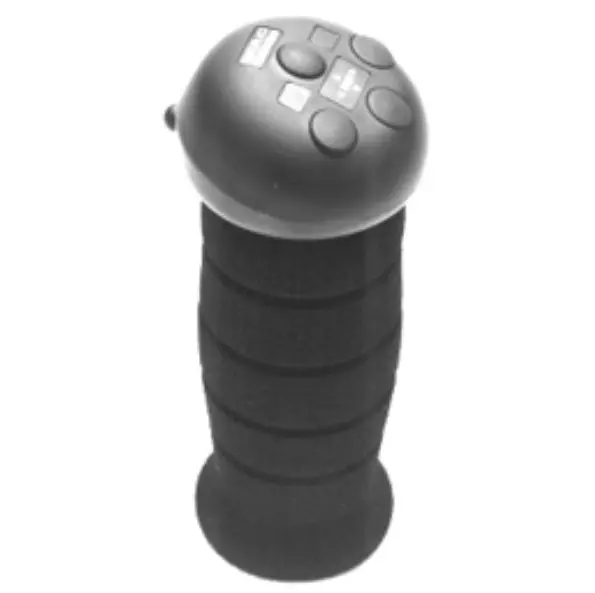

The Ray Allen Company G205 stick grip is a compact control-stick grip providing five functions: a front-mounted push-to-talk (PTT) switch and four flush-fitting pushbutton switches for electric trim control.

The semi-soft foam grip is UV- and oil-resistant, while the upper switch housing has a lightly textured nylon finish. The G205 is approximately 133 mm high.

  • Manufacturer part number: G205
  • Five control functions: PTT plus four pushbutton switches
  • Four SPDT momentary-contact pushbutton switches, rated by the manufacturer at 5 A
  • Designed for one- or two-axis electric trim control
  • Supplied spacers support installation on 19 mm, 22 mm and 25.4 mm control-stick tubes
  • Includes a die-cut, Lexan-coated label sheet

For installation, wiring and clearance requirements, consult the manufacturer’s G205/G207 stick grip wiring instructions and applicable aircraft data before fitment.

Contact Us

Terms and Conditions

Share

Overview

The G205 grip has five functions which include a PTT and 4 pushbutton switches.

The modern design G205 stick grips use four, flush fitting pushbutton switches to control one or two axis electric trim. The grip itself is made of semi-soft UV and oil resistant foam. The upper switch housing is made of nylon with a lightly textured finish. The G205 grips are 5.25” (133 mm) tall. The G205 grips also have a SPDT switch located on the front side of the grip. It is designed to function as a Push-To-Talk (PTT) button.

Ray Allen Company modern design stick grips can be wired directly to Ray Allen trim servos. This eliminates the need to wire relays in your trim system. However, if two grips are used, you will need either relays or a switch to transfer the control of trims from one grip to the other. The G1 and G2 series hand grip is made of semi-soft UV and oil resistant foam and the upper switch housing is lightly textured nylon. The G3 series grip is a lightly textured, BASF UV reisistant composite.

All Ray Allen Stick Grips come as a complete kit including pre-cut and stripped 26 gage Teflon™ wires. RAC grips are designed to fit a 1” stick diameter with spacers included for easy installation on 3/4”, 7/8” stick tubes. All RAC grips have insets for labels and come with a customized, die-cut label sheet. The G3 grips also include three different colored faceplates (black, light gray and light tan) to compliment your aircraft’s interior colors.
