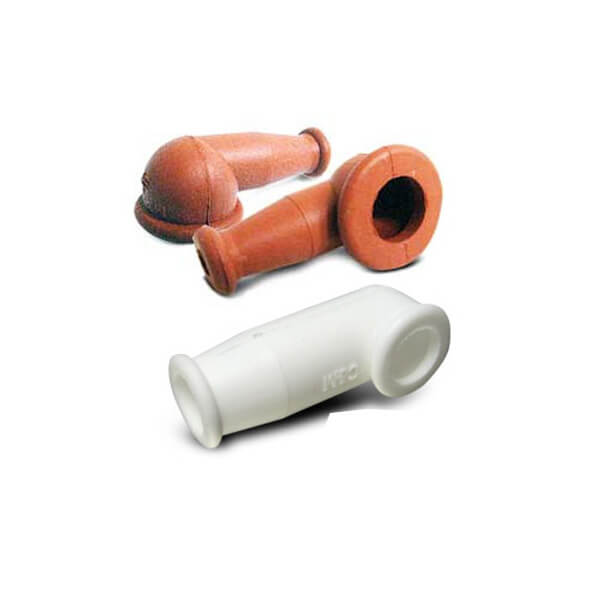

Silicon Nipple MS25171-2S Blk

Silicon Nipple MS25171-2S Blk

https://www.roctexo.com/web/image/product.template/93105/image_1920?unique=99a391e
Part numbers : RX1-11-08287 , 81640-5 , 11-08287
Unit of Measure: EA

1.71 EUR / EA 1.71 EUR 1.71 € excl. VAT

1.71 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
16 EA ready to ship Today
Order before 15:30 CET Today
Up to 70 EA ready to ship on Thursday 2026-08-20
Order before 15:30 CET Today
361 EA available on request, fees apply
Special order from vendor stock.

Black silicone-rubber right-angle terminal nipple for electrical-terminal protection and insulation applications.

Identified as MS25171-2S, manufacturer part number 81640-5. The supplied product source describes the nipple material as silicone rubber to MIL-R-5847, Class II, Grade 50, and references A-A-59178B.

  • Colour: black
  • Configuration: right-angle nipple
  • Dash size: -2
  • Approximate overall length: 64 mm
  • Reference dimensions: 25 mm and 24 mm maximum external dimensions; 1.5 mm nominal wall thickness
  • Unit of measure: each

Please verify the required terminal geometry and applicable maintenance data before installation.

Contact Us

Terms and Conditions

Share

Overview

Right angle nipples made of silicone rubber
MIL-R-5847, Class II, Grade 50. A-A-59178B

Specifications

A-A-59178BABCDEFGH
Dash No.Max.±.125±.005Dia.Dia.Dia.Dia.Dia.
-11.38"0.56"0.06"0.4"0.63"0.16"0.41"0.76"
-22.5"1"0.06"0.56"0.82"0.31"0.56"0.95"
-32.5"1"0.06"0.56"0.82"0.43"0.68"0.95"
-42.5"1"0.06"0.56"0.82"0.56"0.82"0.95"
