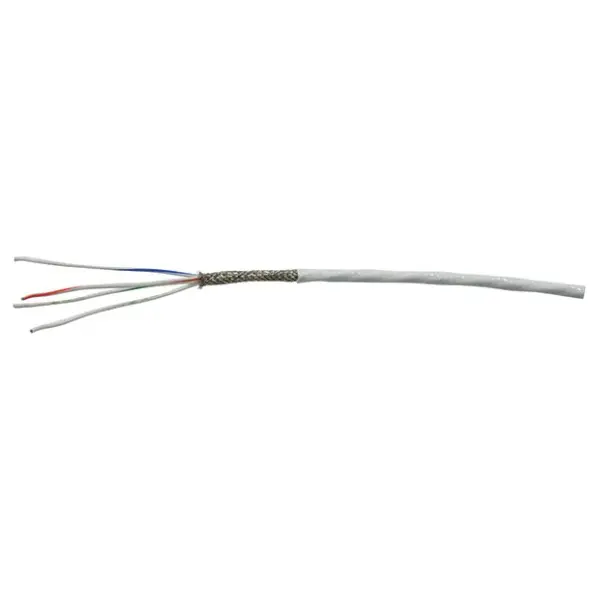

Shielded 22GA 4 Conductor White Wire M27500-22TG4T14

Shielded 22GA 4 Conductor White Wire M27500-22TG4T14

https://www.roctexo.com/web/image/product.template/44002/image_1920?unique=5692af9
Part numbers : RX1-11-07773 , J4272 , 11-07773
Unit of Measure: FT

1.20 EUR / FT 1.2 EUR 1.20 € excl. VAT

1.20 EUR / FT excl. VAT

Not Available For Sale

This combination does not exist.

Availability
100 FT ready to ship on Monday 2026-08-10
Order before 15:30 CET on Monday 2026-08-10
Up to 8,860 FT ready to ship on Thursday 2026-08-13
Order before 15:30 CET on Monday 2026-08-10
Up to 11,531 FT ready to ship on Monday 2026-08-17
Order before 15:30 CET on Monday 2026-08-10
9,032 FT available on request, fees apply
Special order from vendor stock.

Shielded and jacketed four-conductor 22 AWG aircraft wire in white, identified as M27500-22TG4T14. Manufacturer part number: J4272.

This cable combines stranded tinned-copper conductors with ETFE (Tefzel) insulation, a tinned-copper braided shield, and a white ETFE outer jacket. The braided shield is specified with 85% coverage.

  • Configuration: 4 conductors
  • Conductor size: 22 AWG
  • Colour: white
  • Shielding: tinned-copper braid, 85% coverage
  • Insulation and jacket: ETFE (Tefzel)
  • Temperature rating: up to 150°C
  • Voltage rating: 600 V
  • Referenced specification: MIL-C-27500
  • Unit of supply: foot

Suitable for maintenance and wiring projects where the specified M27500-22TG4T14 construction is required. Confirm the applicable installation data and regulatory requirements before use.

Contact Us

Terms and Conditions

Share

Mil SpecConductorWire GaugePart Number
M27500-22TG4T1442211-07773

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White
