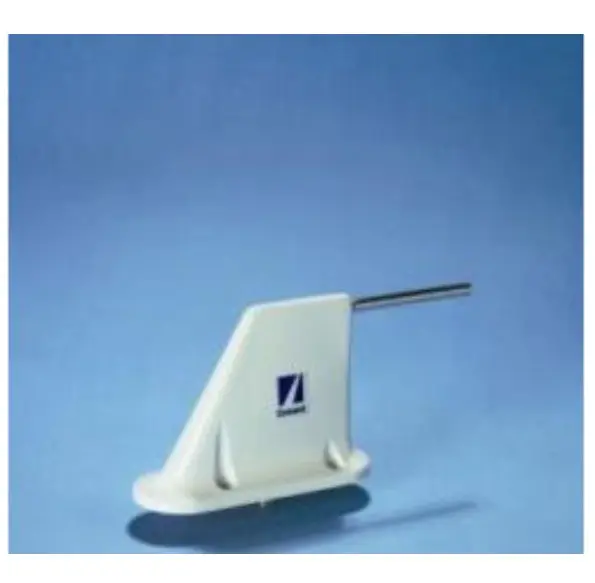

Comant CI-275 Uhf Antenna BNC

Frequency 406-512 MHz

Wide band UHF antenna designed for high-performance aircraft over the full frequency range of 406-512 MHz. Low profile, blade-type antenna is encased in a low drag, low weight molded body to ensure high reliability. The CI 275 comes standard with a BNC connector. Other connectors available. See order option chart. Color is white standard.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

MODEL CI 275 SERIES UHF ANTENNA

Electrical

Frequency

406-512 MHz

VSWR

2.0:1 Maximum

Polarization

Vertical

Radiation Pattern

Equivalent of ¥ë / 4 Stub

Impedance

50 Ohms

Power RF

50 Watts Average

Mechanical

Weight

0.5 lb. Maximum

Height

3.5 in. Maximum

Finish

Polyurethane Enamel

Material

Lexan Housing

Connector

BNC (Female)

Environmental

Temperature

-55¨¬C to +70¨¬C

Altitude

50,000 ft.

Air Speed

600 Knots TAS @ 25,000 ft
