RAMI AV-530 COMMAntenna TSO

RAMI AV-530 COMMAntenna TSO

https://www.roctexo.com/web/image/product.template/114298/image_1920?unique=99a391e
Part numbers : RX1-11-06696 , AV-530 , 11-06696
Unit of Measure: EA

222.87 EUR / EA 222.87 EUR 222.87 € excl. VAT

222.87 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 4 EA ready to ship on Monday 2026-08-17
Order before 17:00 CET on Friday 2026-08-14
Up to 10 EA ready to ship on Thursday 2026-08-20
Order before 17:00 CET on Friday 2026-08-14
17 EA available on request, fees apply
Special order from vendor stock.

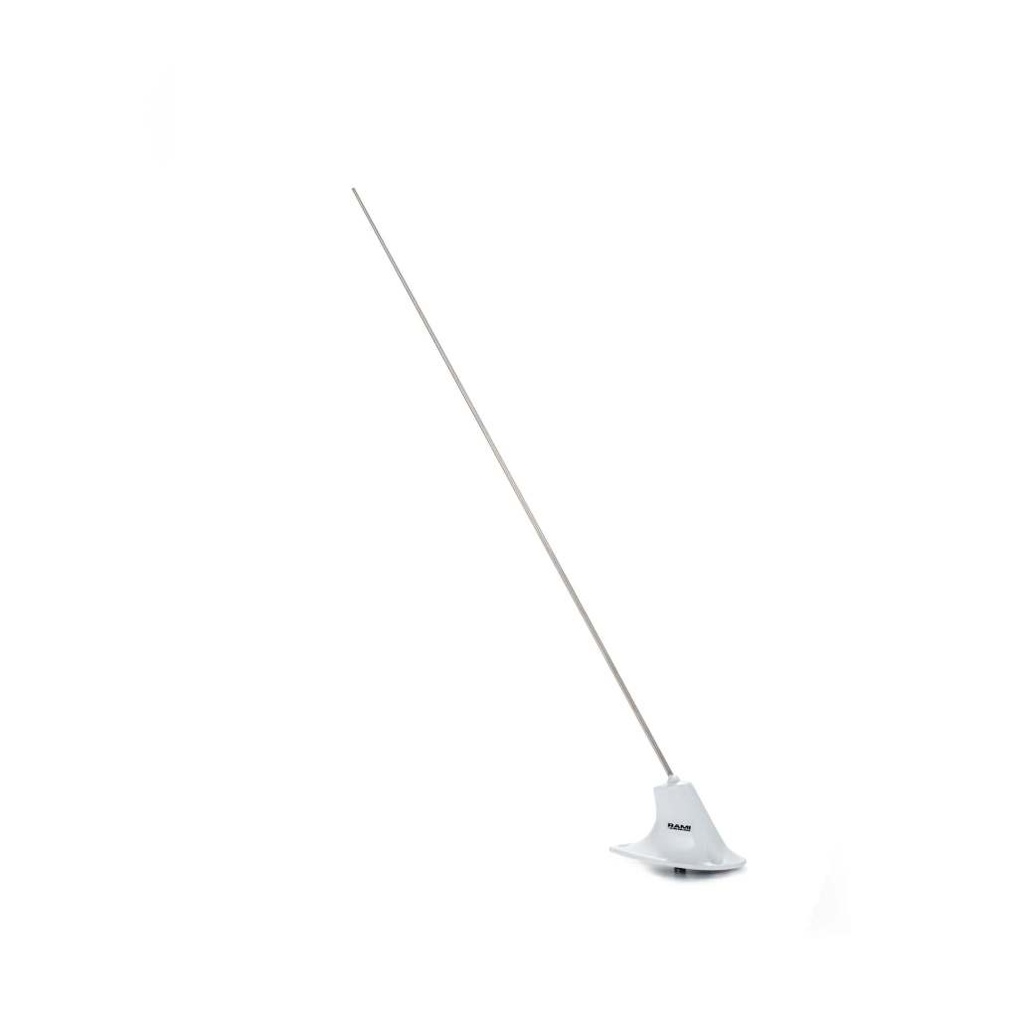

The RAMI AV-530 is a broadband VHF airborne communications antenna for the 118–137 MHz band. Its die-cast aluminium base and tapered stainless-steel whip are designed to reduce drag, while the supplied weather-sealing gasket and mounting hardware support installation preparation.

Manufacturer part number: AV-530

  • Application: airborne VHF communications
  • Frequency range: 118–137 MHz
  • Impedance: 50 ohms nominal
  • Maximum VSWR: 2.5:1
  • Polarisation: vertical
  • Radiation pattern: omni-directional
  • Connector: BNC female
  • RF power capacity: 25 W
  • Maximum height: 578 mm
  • Manufacturer-stated operational limits: up to 563 km/h and 15,240 m altitude
  • FAA TSO: C37d and C38d

Installation should be performed in accordance with the applicable aircraft data and the manufacturer’s installation instructions. FAA TSO status does not by itself establish EASA approval or suitability for a particular aircraft installation.

Manufacturer documentation: AV-530 data sheet and installation instructions.
