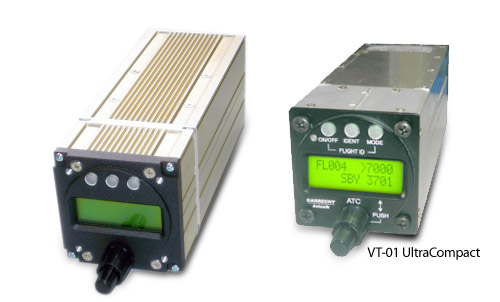

Garrecht Compact Transponder M-S C-2

The Garrecht Compact Transponder M-S C-2 is a compact, single-block Mode S transponder from the VT-01 UltraCompact family. Manufacturer part number VT-0104-070, it is the Class 2 version designed for panel installation where a compact integrated transponder solution is required.

The unit incorporates an internal altitude encoder and is specified as a Level 2se Mode S transponder. Its Class 2 configuration provides a minimum RF output of 71 W at the antenna.

• Manufacturer part number: VT-0104-070
• Product designation: Garrecht Compact Transponder M-S C-2
• Single-block VT-01 UltraCompact configuration
• Mode S transponder, Level 2se
• Integrated altitude encoder
• Class 2 minimum RF output: 71 W
• Published operating limitations for the Class 2 VT-0104-070: maximum 175 kt, 4,570 m (15,000 ft), and 5,700 kg MTOW

Installation, configuration, antenna installation and applicable approval requirements must be assessed for the individual aircraft by appropriately qualified avionics personnel. Consult the manufacturer’s VT-01 installation manual before installation.
