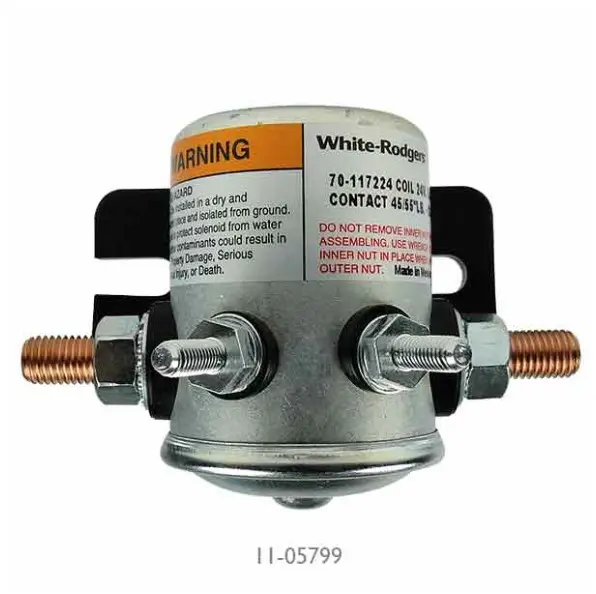

Master Relay 24V

Master Relay 24V

https://www.roctexo.com/web/image/product.template/85336/image_1920?unique=99a391e
Part numbers : RX1-11-05799 , 70 117224S1 , 11-05799
Unit of Measure: EA

42.18 EUR / EA 42.18 EUR 42.18 € excl. VAT

42.18 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
1 EA ready to ship Today
Order before 15:30 CET Today
Up to 3 EA ready to ship on Monday 2026-08-17
Order before 15:30 CET Today
Up to 8 EA ready to ship on Thursday 2026-08-20
Order before 15:30 CET Today
25 EA available on request, fees apply
Special order from vendor stock.

The Master Relay 24V is a continuous-duty battery solenoid/master relay for 24 V electrical power-control applications. It is supplied with an isolated coil and manufacturer part number 70 117224S1.

Designed for homebuilt aircraft applications, the relay features a high-current-capacity control arrangement and an enclosed, dust-resistant case. Its extended steel enclosure is intended to support lower heat rise and sensitive operation.

  • 24 V isolated-coil configuration
  • Continuous-duty operation
  • Dielectric strength: 500 V
  • Operating temperature range: -40 °C to +50 °C
  • Mechanical life, no load: 250,000 operations
  • Electrical life at rated load: 100,000 operations
  • Recommended mounting orientation: cap down
  • Approximate weight: 0.41 kg

Not for certified aircraft. Follow the applicable installation documentation and terminal-torque requirements during installation.

Roctexo part number: RX1-11-05799
Manufacturer part number: 70 117224S1

Contact Us

Terms and Conditions

Share

VoltageCoil TerminationManufacturer PNPart No.
24VIsolated Coil70 117224 S111-05799

Overview

(Battery Solenoid) - Applicable to all homebuilts. Continuous duty. 12V and 24V.
NOT FOR CERTIFIED AIRCRAFT

Features

  • High current capacity control
  • Isolated or grounded coils
  • Enclosed in dust-resistant case
  • Longer steel encasement permits lower heat rise and more sensitive operation on Type 71

Specifications

  • Dielectric Strength: 500 Volts
  • Temperature Range: -40°F/-40°C to 122°F/50°C
  • Mechanical Life (no load): 250,000 operations
  • Electrical Life (rated load): 100,000 operations
  • Mounting Position: Recommended mounting with cap down
  • Vibration: 5 g’s vertical and horizontal planes
  • Weight (approximate): Type 70–14.0 oz.
  • Duty Cycle: Continuous
  • Hardware Torque Specification: Contact Terminal: 45-55 inch-lbs, Coil Terminal: 12-18 inch-lbs.
  • Mounting Bracket: 100 inch-lbs. max (a backup wrench must be used to hold the bottom nut stationary during installation)
