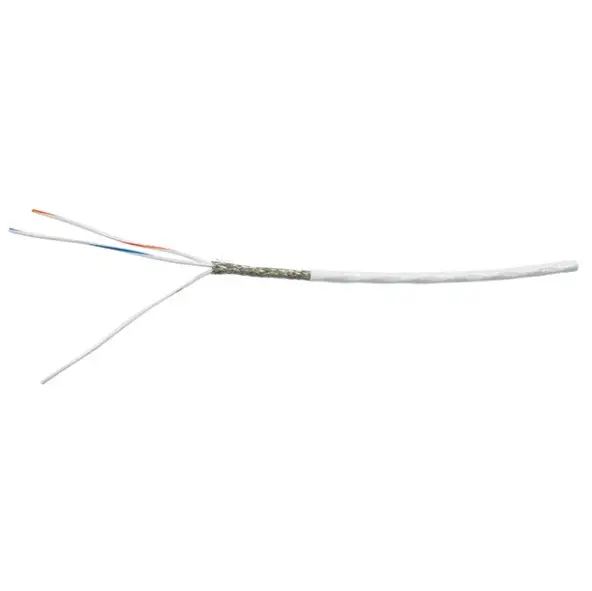

Shielded 22GA 3 Conductor White Wire M27500-22TG3T14

Shielded 22GA 3 Conductor White Wire M27500-22TG3T14

https://www.roctexo.com/web/image/product.template/101008/image_1920?unique=96bc897
Part numbers : RX1-11-05651 , J3597 , 11-05651
Unit of Measure: FT

0.93 EUR / FT 0.93 EUR 0.93 € excl. VAT

0.93 EUR / FT excl. VAT

Not Available For Sale

This combination does not exist.

Availability
250 FT ready to ship on Monday 2026-08-10
Order before 15:30 CET on Monday 2026-08-10
Up to 2,042 FT ready to ship on Thursday 2026-08-13
Order before 15:30 CET on Monday 2026-08-10
Up to 5,038 FT ready to ship on Monday 2026-08-17
Order before 15:30 CET on Monday 2026-08-10
44,128 FT available on request, fees apply
Special order from vendor stock.

Shielded and jacketed 22 AWG, 3-conductor white aircraft wire for electrical wiring work where a screened cable construction is specified. Identified as M27500-22TG3T14 and manufacturer model J3597.

  • Three stranded tin-plated copper conductors
  • White ETFE (Tefzel) insulation and outer jacket
  • Tin-plated copper-braid shield with 85% coverage
  • Rated for temperatures up to 150°C and voltages up to 600 V
  • Conforms to MIL-C-27500; replaces MIL-C-7078/3 according to the supplied source information
  • Supplied and priced per foot

Please verify the required wire specification, conductor count, colour, and installation requirements against the applicable maintenance data before use.

Contact Us

Terms and Conditions

Share

Mil SpecConductorWire GaugePart Number
M27500-22TG3T1432211-05651

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White


Reference Chart
