Shielded 22GA 3 Con White Wire M27500-22TG3T14 (1000Ft)

Shielded 22GA 3 Con White Wire M27500-22TG3T14 (1000Ft)

https://www.roctexo.com/web/image/product.template/54364/image_1920?unique=e88ec8b
Part numbers : RX1-11-05651-1000 , M27500-22TG3T14 , 11-05651-1000
Unit of Measure: EA

1007.97 EUR / EA 1007.97 EUR 1,007.97 € excl. VAT

1007.97 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 7 EA ready to ship on Thursday 2026-09-03
Order before 16:00 CET Today

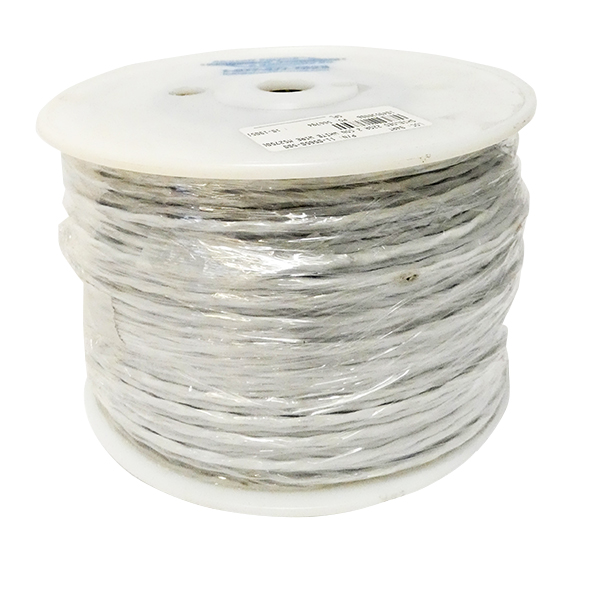

Shielded 22 AWG, 3-conductor white aircraft wire identified by manufacturer part number M27500-22TG3T14. Supplied as a 1,000 ft spool (approximately 305 m).

This shielded and jacketed wire is described as conforming to MIL-C-27500 and replacing MIL-C-7078/3. Its construction combines stranded tin-plated copper conductors, ETFE (Tefzel) insulation, a tin-plated copper-braid shield, and a white ETFE outer jacket.

  • 3 conductors, 22 AWG
  • White ETFE jacket
  • Tin-plated copper-braid shield with 85% coverage
  • Stranded tin-plated copper conductors
  • Temperature rating: up to 150°C
  • Voltage rating: 600 V
  • Manufacturer part number: M27500-22TG3T14

Please verify the part number, wire construction, and installation requirements against the applicable maintenance data before use.
