Shielded 22GA 2 Con White Wire MS27500-22TG2T14 (500Ft)

Image for illustration only. It may show a product series rather than the exact product offered.

Shielded 22GA 2 Con White Wire MS27500-22TG2T14 (500Ft)

https://www.roctexo.com/web/image/product.template/126461/image_1920?unique=706a944
Part numbers : RX1-11-05650-500 , M27500-22TG2T14 500FT , 11-05650-500
Unit of Measure: EA

389.16 EUR / EA 389.16 EUR 389.16 € excl. VAT

389.16 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 3 EA ready to ship on Thursday 2026-10-08
Order before 16:00 CET on Tuesday 2026-10-06
2 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

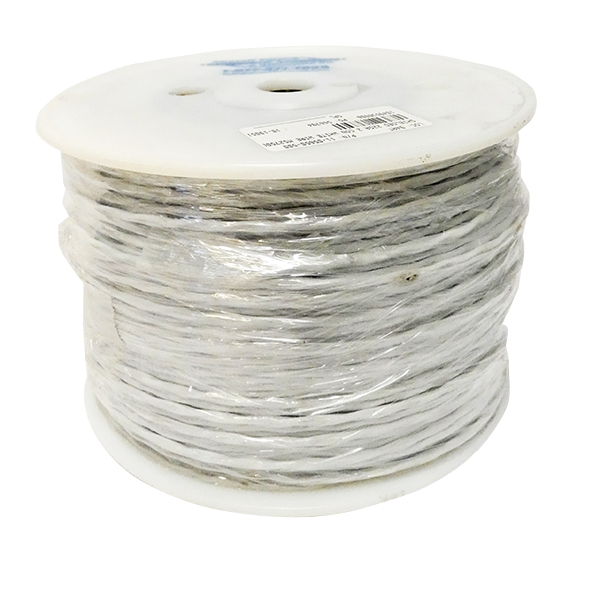

Shielded and jacketed 22 AWG, two-conductor aircraft wire in white, supplied on a 500 ft spool.

Part number M27500-22TG2T14 500FT identifies a MIL-C-27500 construction using MIL-W-22759/18 basic wire. The cable features stranded tin-plated copper conductors, ETFE (Tefzel) insulation and outer jacket, plus a tin-plated copper-braid shield with 85% coverage.

  • 22 AWG, 2-conductor shielded wire
  • White ETFE (Tefzel) outer jacket
  • Stranded tin-plated copper conductors
  • Tin-plated copper-braid shield, 85% coverage
  • Rated to 150 °C and 600 V
  • 500 ft spool

Please verify the required wire specification, conductor identification and installation requirements against the applicable maintenance data before purchase or installation.
