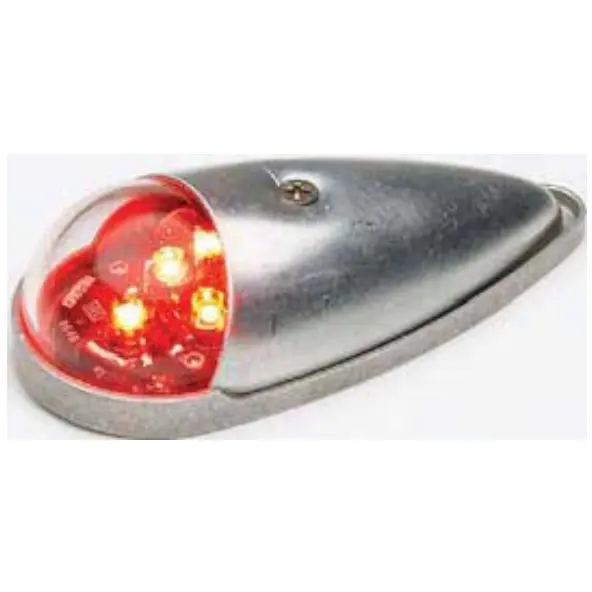

Whelen 7110504 28V Red LED Pos
Part Number(s): 01-0771105-04, 11-05634
Unit of Measure Name:
Units
Internal Reference:
RX1-11-05634
| Model | Description | Volt | Color | Leads | PN |
|---|---|---|---|---|---|
| 7110504 | LED Forward Position Light FAA/TSO-C30c Type I | 28 | Red | Std - Red/Black | 11-05634 |
Overview
| 71105 series are fully FAA TSO compliant Forward Position lights. LED™s provide a significant reduction in electrical current draw over conventional light bulbs. Direct replacement for Whelen Model W1285 series (Version STC™d on Learjet Aircraft). Operational: 14/28 VDC (nominal) Input Current:Voltage: 0.25 Amps EQUIPMENT LIMITATIONS: An approved forward position lighting system consists of two lights, one located on each wingtip. CONTINUED AIRWORTHINESS: The 71105 series LED wingtip position light assembly is designed with 3 LED’s. If any one LED fails, the unit must be repaired or replaced. Inspect the lens. Replace if there is excessive scratching, discoloration or cracking. |
