AirGizmos Garmin 496 500 660 Series Horizontal Angle Adapter

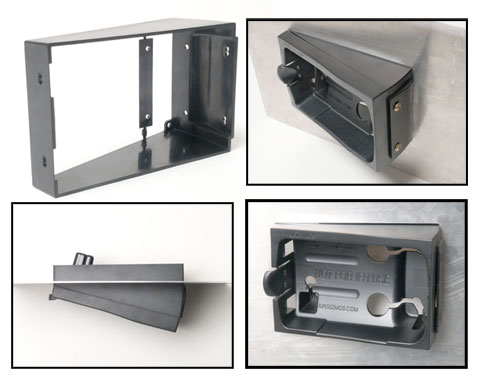

The AirGizmos PD7 Horizontal Angle Adapter is an add-on mounting accessory for selected AirGizmos Panel Dock® installations. It positions the installed dock and device at a fixed 15° horizontal angle to improve viewing from an offset seating position.

• Manufacturer part number: PD7
• Fixed 15° horizontal viewing angle
• May be mounted in either direction for left- or right-seat viewing
• Fits the same panel cut-out as the compatible Panel Dock, supporting retrofit installation without changing the existing cut-out
• Also supports surface mounting of the compatible Panel Dock where suitable cable-routing clearance is available

This adapter is intended for use with compatible AirGizmos Panel Docks, including PD4 for Garmin GPSMAP 196/296/396/495/496, PD16 for Garmin aera 500 series, PD28 for Garmin aera 660, and PD25/PD26 iPhone Panel Docks. A compatible Panel Dock is required and is not included.

Installation should allow adequate clearance for cable routing behind the panel. Refer to the applicable AirGizmos installation documentation for the Panel Dock and angle adapter configuration.

Manufacturer product information: AirGizmos PD7 Horizontal Angle Adapter
