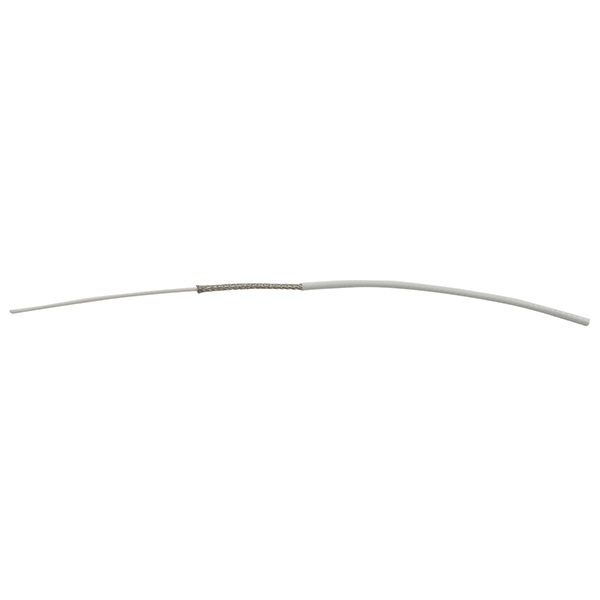

Shielded 24GA White Wire M27500-24TG1T14

Image for illustration only. It may show a product series rather than the exact product offered.

Shielded 24GA White Wire M27500-24TG1T14

https://www.roctexo.com/web/image/product.template/80921/image_1920?unique=f80929c
Part numbers : RX1-11-04476 , M27500-24TG1T14 , 11-04476
Unit of Measure: FT

1.11 EUR / FT 1.11 EUR 1.11 € excl. VAT

1.11 EUR / FT excl. VAT

Not Available For Sale

This combination does not exist.

Availability
250 FT ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 599 FT ready to ship on Monday 2026-10-05
Order before 15:30 CET Tomorrow
Up to 1,742 FT ready to ship on Thursday 2026-10-08
Order before 15:30 CET Tomorrow
2,803 FT available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

Shielded 24 AWG white aircraft wire, identified by part number M27500-24TG1T14. Suitable for procurement and maintenance requirements where a single-conductor, shielded and jacketed wire is specified.

  • 24 AWG stranded tin-plated copper conductor
  • White extruded ETFE insulation and outer jacket
  • Tin-plated copper-braid shield with 85% coverage
  • Temperature rating: up to 150 °C
  • Voltage rating: 600 V
  • Conforms to MIL-C-27500; replaces MIL-C-7078/3
  • Supplied by the foot

Please verify the required wire specification, colour, conductor size and shielding requirement against the applicable aircraft maintenance data before installation.

Contact Us

Terms and Conditions

Share

Mil SpecConductorWire GaugePart Number
M27500-24TG1T1412411-04476

Overview

This shielded & jacketed aircraft wire conforms to MIL-C-27500 & replaces MIL-C-7078/3. It incorporates MIL-W-22759/18 basic wire and features a Tefzel insulation, a shield of tin- plated copper braid and a jacket of Tefzel. It is temperature rated to 150°C & voltage rated at 600 volts. Top quality wire to military specs.

*8 Gauge shielded wire is used in converting generator systems to alternators. Conforms to MIL-C-27500

Specifications

  • Construction; Stranded tin plated copper conductor extruded etfe tin plated copper braid 85% coverage white extruded etfe jacket.
  • Color: White


Reference Chart
