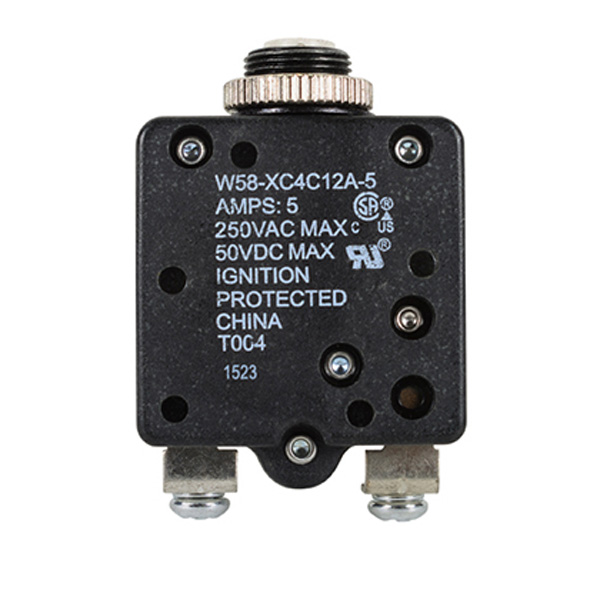

TE P&B Circuit Breaker W58-XC4C12A-5

TE P&B Circuit Breaker W58-XC4C12A-5

https://www.roctexo.com/web/image/product.template/69926/image_1920?unique=9225385
Part numbers : RX1-11-03941 , W58-XC4C12A-5 , 11-03941
Unit of Measure: EA

11.40 EUR / EA 11.4 EUR 11.40 € excl. VAT

11.40 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
5 EA ready to ship on Monday 2026-08-10
Order before 15:30 CET on Monday 2026-08-10
Up to 71 EA ready to ship on Thursday 2026-08-13
Order before 15:30 CET on Monday 2026-08-10
Up to 231 EA ready to ship on Monday 2026-08-17
Order before 15:30 CET on Monday 2026-08-10
194 EA available on request, fees apply
Special order from vendor stock.

The TE Connectivity / Potter & Brumfield W58-XC4C12A-5 is a W58-series, single-pole thermal circuit breaker with a 5 A current rating. It features a white, non-illuminated push-to-reset actuator and a series-trip circuit function.

Specified for operating voltages up to 250 VAC and 50 VDC, this circuit breaker has a trip time of 6–30 seconds at 200% of rated current. The unit is configured with 6-32 screw terminals at 90° and mounting hardware assembled to the bushing.

  • Manufacturer part number: W58-XC4C12A-5
  • TE internal number: 4-1393249-9
  • Thermal circuit breaker, series trip
  • 5 A, 1 pole
  • Push-to-reset actuator; white, non-illuminated
  • Operating voltage: up to 250 VAC / 50 VDC
  • Trip time at 200%: 6–30 seconds
  • Terminal configuration: 6-32 screws, 90°

For detailed technical characteristics and product documentation, refer to the TE Connectivity product page.

Contact Us

Terms and Conditions

Share

Overview

These bi-metallic single pole breakers weigh less than 2 oz. and are especially suitable for homebuilt aircraft. Used as original equipment in Beech, Cessna and Piper aircraft. Maximum operating voltages: 32 VDC and 250 VAC (to 400 Hz).

Features

  • 0.5 amp to 30 amp ratings.
  • Cannot be manually tripped.
  • Button extends for visual trip indication.
  • Push button to reset the breaker.
  • Termination is a screw or .250" QC.

Specifications

  • 5 AMP
  • AC: 250V
  • DC: 50V
  • 250 VAC
  • Panel Mount, 1 pole, push button actuator, white
  • Height: 34.93 mm
  • Length: 34.93 mm
  • Width: 16.76 mm
  • Mfr Part No: 4-1393249-9
  • ECCN: EAR99
  • Schedule B Code: 8536.20.0020
