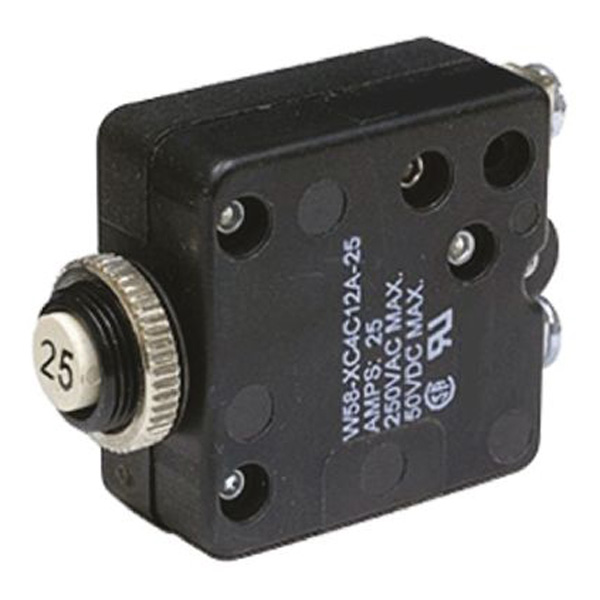

TE Thermal Circuit Breaker W58-XC4C12A-25

The TE Connectivity / Potter & Brumfield W58-XC4C12A-25 is a 25 A, single-pole thermal circuit breaker from the W58 series. It uses a series-trip function and a white, non-illuminated push-to-reset actuator.

This panel-mount breaker provides visible trip indication through its extended button and is reset by pressing the actuator. It is configured with 6-32 screw terminals at 90° and a black metal mounting bushing with knurled nut and lockwasher hardware.

• Manufacturer part number: W58-XC4C12A-25
• TE Connectivity internal number: 4-1393249-4
• Current rating: 25 A
• Operating voltage: 250 VAC / 50 VDC
• Interrupt capacity: 2,000 A at 50 VDC or 1,000 A at 250 VAC
• Trip time at 200% rated current: 6–30 seconds
• Panel cut-out diameter: approximately 12 mm
• Push-to-reset, white actuator; no illumination

Please verify the part number, electrical characteristics and installation configuration against the applicable approved technical data before use.

Technical documentation: TE Connectivity product page and W58 series data sheet.
