Sta-Kon Terminal RA18-14

Sta-Kon Terminal RA18-14

https://www.roctexo.com/web/image/product.template/129010/image_1920?unique=135b995
Part numbers : RX1-11-03863 , G2002131 , 11-03863
Unit of Measure: EA

1.30 EUR / EA 1.3 EUR 1.30 € excl. VAT

1.30 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
10 EA ready to ship Tomorrow
Order before 15:30 CET Tomorrow
Up to 115 EA ready to ship on Thursday 2026-09-03
Order before 15:30 CET Tomorrow
Up to 250 EA ready to ship on Monday 2026-09-07
Order before 15:30 CET Tomorrow
316 EA available on request, fees apply
Special order from vendor stock.

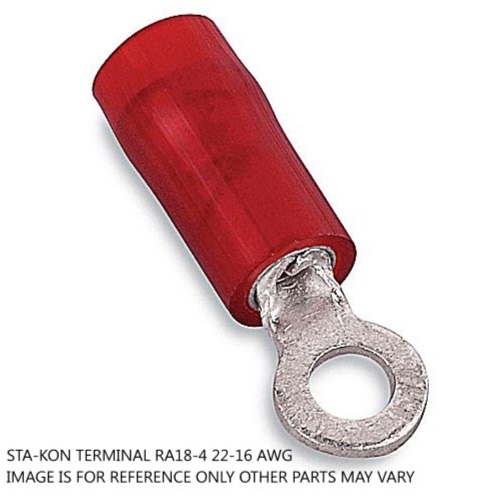

The Sta-Kon RA18-14 is a red nylon-insulated ring terminal for crimp termination of 22–16 AWG conductors. It features a 6.4 mm bolt hole and is suitable for electrical installations requiring a ring-type terminal connection.

The terminal combines a copper, tin-plated conductor barrel with a high-dielectric-strength nylon sleeve. An inner bronze insulation-grip sleeve is designed to support the conductor and help reduce conductor creep. This is a standard single-crimp terminal.

  • Manufacturer part numbers: RA18-14; G2002131
  • Conductor range: 22–16 AWG
  • Bolt hole: 6.4 mm
  • Insulation colour: red
  • Voltage rating: 600 V
  • Construction: copper terminal with tin plating and nylon insulation
