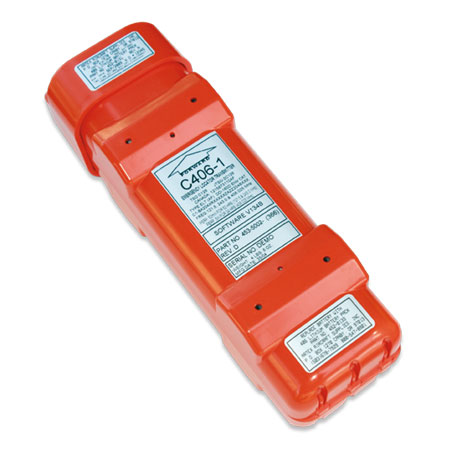

Artex C406-1 ELT Kit

The ARTEX C406-1 ELT Kit, manufacturer part number 455-5015, is an emergency locator transmitter configuration for fixed-wing aircraft. The C406-1 is designed for automatic activation during an impact event, with manual activation also available, and transmits on 121.5 MHz, 243 MHz and 406 MHz.

Its 406 MHz digital distress message is transmitted through the Cospas-Sarsat satellite system to support timely identification and search-and-rescue coordination. The C406-1 uses a single coaxial cable arrangement for all three operating frequencies.

• Manufacturer P/N: 455-5015
• ARTEX C406-1 fixed-wing ELT configuration
• Blade antenna: P/N 110-340
• Protective edge: P/N 110-340-01
• Remote switch and accessories: P/N 455-6196
• BNC female output connector
• Primary G-switch automatic activation and manual activation capability
• Manufacturer-listed approvals: TSO C126, ETSO-2C126 and Cospas-Sarsat

The manufacturer identifies a five-year lithium battery service life and replacement battery P/N 452-0133. Verify the required aircraft installation configuration, applicable approval basis and maintenance documentation before installation.

Relevant documentation, including the C406-1 Series Description, Operation, Installation and Maintenance Manual and available approval downloads, can be accessed from the ARTEX/ACR C406-1 manufacturer product page.
