Nulite Inst Light LW3028Aa

Image for illustration only. It may show a product series rather than the exact product offered.

Nulite Inst Light LW3028Aa

https://www.roctexo.com/web/image/product.template/85292/image_1920?unique=275988a
Part numbers : RX1-11-02851 , LW3028AA , 11-02851
Unit of Measure: EA

75.66 EUR / EA 75.66 EUR 75.66 € excl. VAT

75.66 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 6 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 8 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
5 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

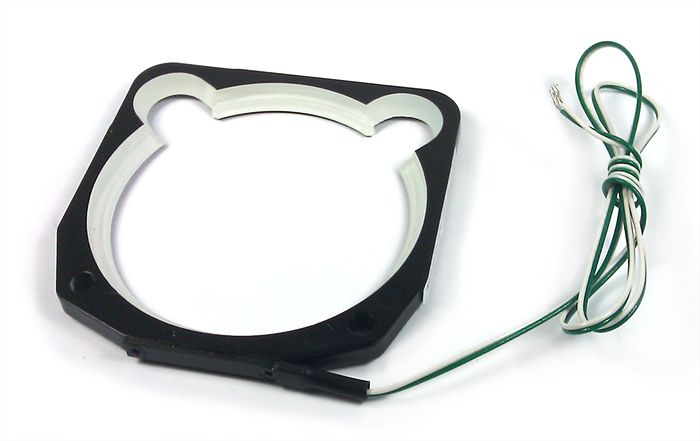

The Nulite LW3028AA is a 28 V instrument light wedge for nominal 79.4 mm (3-1/8 in) aircraft altimeter installations. Fitted between the instrument and panel, the Nulite design directs illumination towards the instrument face to help reduce glare and concentrated bright areas.

The AA configuration incorporates a left-side knob cut-out and clearance for the Kollsman adjustment window. It is intended for use with an existing instrument-panel dimming system.

  • Manufacturer part number: LW3028AA
  • Roctexo part number: RX1-11-02851
  • Operating voltage: 28 V
  • Instrument size: nominal 79.4 mm (3-1/8 in)
  • Configuration: altimeter cut-out with Kollsman window clearance
  • Manufacturer-stated approval: FAA-PMA, PMA PQ0876SW

Not for use with DC-to-AC inverted systems. Verify instrument geometry, electrical-system suitability, applicable airworthiness requirements, and acceptance by the competent authority before installation. No EASA approval is asserted for this item.
