RAMI AV-12 Nav Antenna TSO
Part Number(s): 11-02368, AV-12
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-11-02368
| DESCRIPTION | PART NO. |
|---|---|
| RA MILLER ANTENNA AV-12 | 11-02368 |
Overview

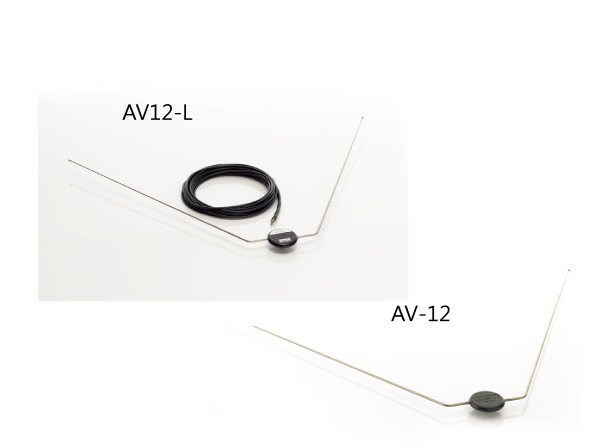

P/N AV-12L The AV-12 is a VOR/LOC receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph. The AV-12L includes all of the same features as the AV-12 and a 25 ft cable with integral balun is also supplied. Order P/N 11-03992 for male BNC connector. |
Specifications
- Application: VOR Receive Only
- Frequency: 108 to 118 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 2.2 to 1 Maximum
- Connector: N/A
- Max Weight: 5.5 oz (14 oz with cable)
- Width Across Tips: 29-1/2"
- RF Power Capacity: Receive only
