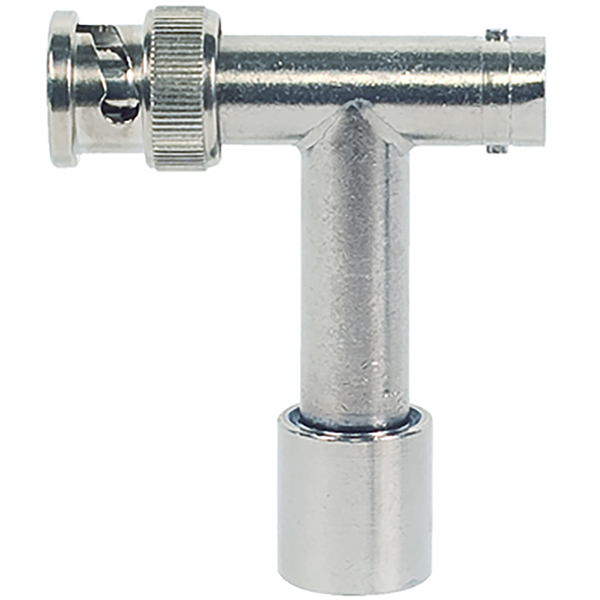

TED GPS Notch Filter

TED GPS Notch Filter

https://www.roctexo.com/web/image/product.template/58336/image_1920?unique=393e054
Part numbers : RX1-11-02204 , 4-70-54 , 11-02204
Unit of Measure: EA

121.34 EUR / EA 121.34 EUR 121.34 € excl. VAT

121.34 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The TED GPS Notch Filter, manufacturer part number 4-70-54, is an inline BNC filter intended to reduce GPS-frequency interference associated with VHF communications radio harmonics. It is fitted with standard BNC bayonet connections for installation in the coaxial line between radio and antenna.

The filter is tuned to reject signals at the GPS L1 frequency of 1575.42 MHz, with stated rejection exceeding 50 dB. Each unit is individually tuned and checked by the manufacturer.

  • Manufacturer part number: 4-70-54
  • Inline configuration with BNC bayonet couplings
  • GPS L1 notch frequency: 1575.42 MHz
  • Stated notch rejection: greater than 50 dB
  • Maximum voltage: 500 V
  • Dielectric strength: 1,500 V
  • Insulation resistance: 5,000 MΩ
  • Operating temperature range: -55 °C to +85 °C
  • Nickel plating; nickel contacts with 30 microinch gold plating

Installation suitability, interference diagnosis and any required aircraft installation approval should be determined by appropriately qualified avionics personnel.
