24 Volt Battery Charger & Amps W Battery Clip

24 Volt Battery Charger & Amps W Battery Clip

https://www.roctexo.com/web/image/product.template/76592/image_1920?unique=4ab7bc3
Part numbers : RX1-11-00889 , JAC0724-C , 11-00889
Unit of Measure: EA

122.65 EUR / EA 122.65 EUR 122.65 € excl. VAT

122.65 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

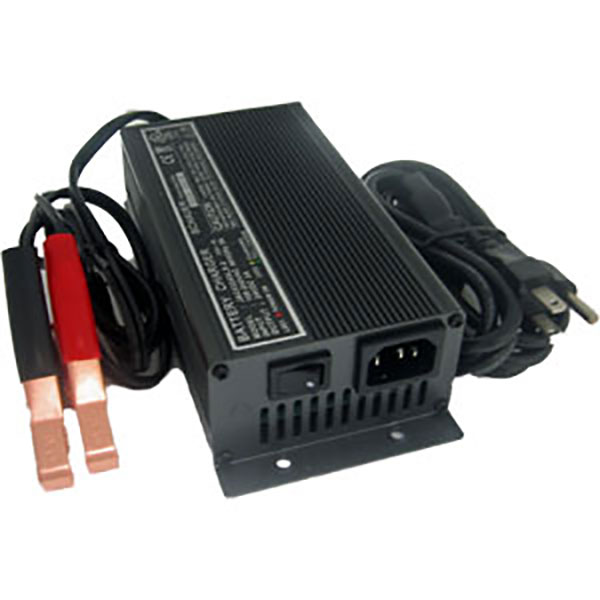

The Schauer JAC0724-C is a 24 V, 7 A automatic battery charger supplied with battery clips. It uses a three-stage charging profile with a final float/maintenance mode for compatible rechargeable lead-acid batteries.

  • Manufacturer part number: JAC0724-C
  • Roctexo part number: RX1-11-00889
  • Nominal DC output: 24 V
  • Maximum DC output current: 7 A
  • Charging profile: constant-current, constant-voltage and float maintenance
  • Specified battery types: flooded lead-acid, AGM, gel, SLA and VRLA
  • Safety features include reverse-polarity, short-circuit, over-voltage and over-temperature protection
  • Aluminium housing with cooling fan, mounting flanges and status LEDs
  • Approximate dimensions: 178 × 88 × 47 mm
  • Approximate weight: 0.8 kg

The standard unit is specified for 115 V AC, 50/60 Hz input and is fitted with an IEC C14 inlet. Verify mains-input suitability and the battery manufacturer’s recommended charge rate before use.

Manufacturer operating manual (PDF)
