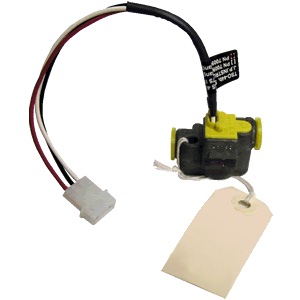

JPI EDM Gravity Fuel Flow Transducer Sensor 231 TSO 700900-2

Image for illustration only. It may show a product series rather than the exact product offered.

JPI EDM Gravity Fuel Flow Transducer Sensor 231 TSO 700900-2

https://www.roctexo.com/web/image/product.template/40460/image_1920?unique=0bcf8e6
Part numbers : RX1-10-27094 , 700900-2 , 10-27094
Unit of Measure: EA

327.97 EUR / EA 327.97 EUR 327.97 € excl. VAT

327.97 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 5 EA ready to ship on Thursday 2026-10-01
Order before 16:00 CET on Tuesday 2026-09-29
8 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The J.P. Instruments Fuel Flow Transducer 231, manufacturer part number 700900-2, is a gravity-feed fuel flow sensor for use with compatible fuel-flow monitoring installations. Also identified as the FXT-231, it generates a pulse signal from an opto-electronic pickup to support fuel-flow indication.

The Model 231 is intended by J.P. Instruments for gravity-feed fuel systems without an engine-driven fuel pump. Its internal flow path is designed to vent vapour bubbles during fuel flow, while the rotor-based sensing system measures flow rate.

  • Manufacturer: J.P. Instruments
  • Manufacturer part number: 700900-2
  • Model identification: 231 / FXT-231
  • Fuel-flow range: 3 to 90 GPH
  • Fuel ports: 1/4 in female NPT
  • Electrical supply: 12 to 15 VDC
  • Signal output: open-collector transistor output
  • Operating temperature range: -55°C to +70°C

Installation should follow the applicable J.P. Instruments installation documentation and approved maintenance data. J.P. Instruments specifies horizontal mounting with the wires facing upward, and identifies the direction of fuel flow on the transducer body.

Roctexo part number: RX1-10-27094
