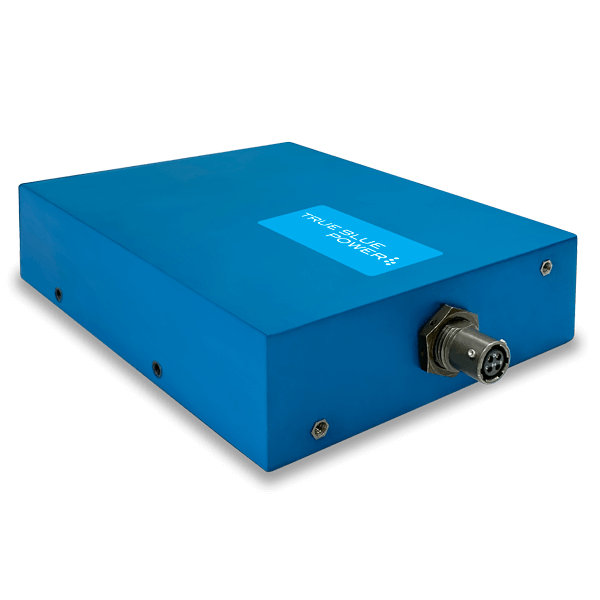

True Blue Power Emergency Battery Power Supply 4 Pin

Image for illustration only. It may show a product series rather than the exact product offered.

True Blue Power Emergency Battery Power Supply 4 Pin

Hazardous product
Hazardous material Special shipping rules and carrier restrictions may apply.
https://www.roctexo.com/web/image/product.template/287153/image_1920?unique=3284d0a
Part numbers : RX1-10-07769 , 6430028-1 , 10-07769
Unit of Measure: EA

15002.75 EUR / EA 15002.75 EUR 15,002.75 € excl. VAT

15002.75 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The True Blue Power TS28 Emergency Battery Power Supply is a 28 V electrical-bus unit designed to provide nominal 24 VDC backup power for emergency lighting and other critical electrical loads following loss of main aircraft power.

Manufacturer part number: 6430028-1
Roctexo part number: RX1-10-07769

  • 28 Wh nickel-metal hydride (NiMH) emergency battery power supply
  • Nominal output: 24 VDC, maximum 3 A
  • Input range: 26.5–32 VDC
  • 4-pin Mil-Spec circular-style electrical connector
  • Removable, rechargeable battery pack designed for field replacement
  • Protection features include short-circuit, over-temperature, under-voltage and over-voltage protection, with EMI filtering
  • Approximate dimensions, excluding connector: 140 × 112 × 38 mm
  • Approximate unit weight: 0.8 kg
  • Specified as certified to FAA TSO-C173a and qualified to DO-293A and RTCA DO-160G

Verify part-number suitability, connector configuration, installation requirements and regulatory eligibility for the specific aircraft installation before purchase or fitment.
