True Blue Power Battery Lithium-Ion Gen5 TB30 6430030-1

Image for illustration only. It may show a product series rather than the exact product offered.

True Blue Power Battery Lithium-Ion Gen5 TB30 6430030-1

Hazardous product
Hazardous material Special shipping rules and carrier restrictions may apply.
https://www.roctexo.com/web/image/product.template/133124/image_1920?unique=3c621ad
Part numbers : RX1-10-07539 , 6430030-1 , 10-07539
Unit of Measure: EA

48578.83 EUR / EA 48578.83 EUR 48,578.83 € excl. VAT

48578.83 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

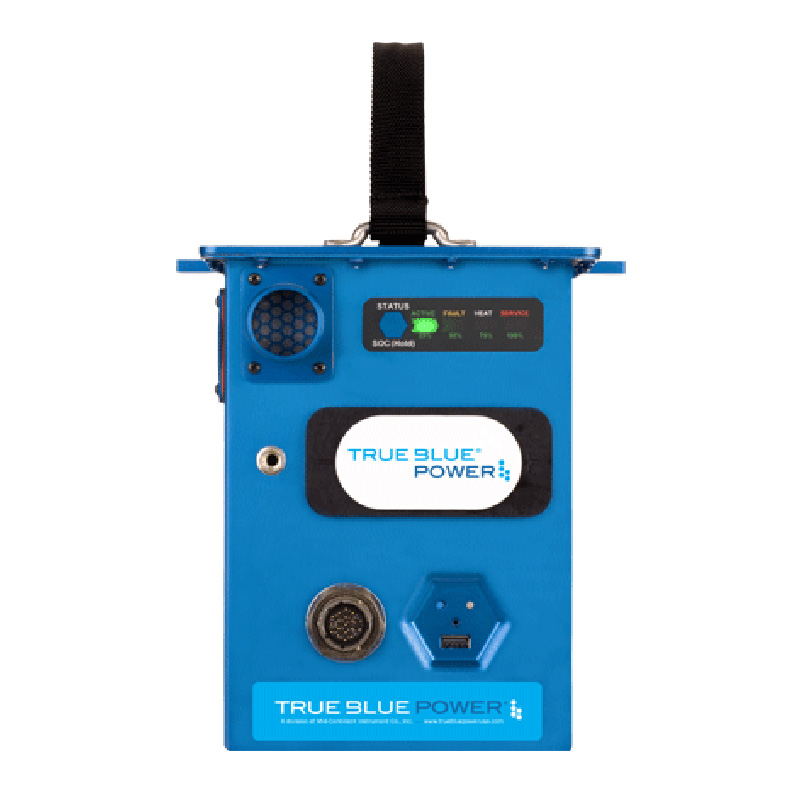

The True Blue Power Gen5 TB30 is a 26.4 VDC, 30 Ah lithium-ion aircraft battery for applications requiring a high-current main-ship battery. Manufacturer part number 6430030-1.

The TB30 combines a lightweight anodised aluminium case with an integrated battery-management system, automatic internal heater and Built-In Test (BIT) indication for real-time state-of-charge and state-of-health information. It is designed for on-condition maintenance.

  • Nominal output voltage: 26.4 VDC
  • Nominal charge voltage: 28 VDC
  • Capacity: 30 Ah nominal at 23°C
  • Output current: 575 A continuous; 1,500 A maximum
  • Operating temperature range: -40°C to +70°C
  • Weight: 12.6 kg
  • Approximate dimensions: 318 x 218 x 224 mm (L x W x H)
  • Case: blue anodised aluminium
  • Certification stated by the manufacturer: FAA TSO-C179b, Class A-4B; RTCA DO-311A, DO-160G and DO-178C DAL A

Published manufacturer documentation includes an installation manual, technical drawing, battery support manual and safety data sheet. Verify the applicable installation, maintenance and regulatory requirements before use.
