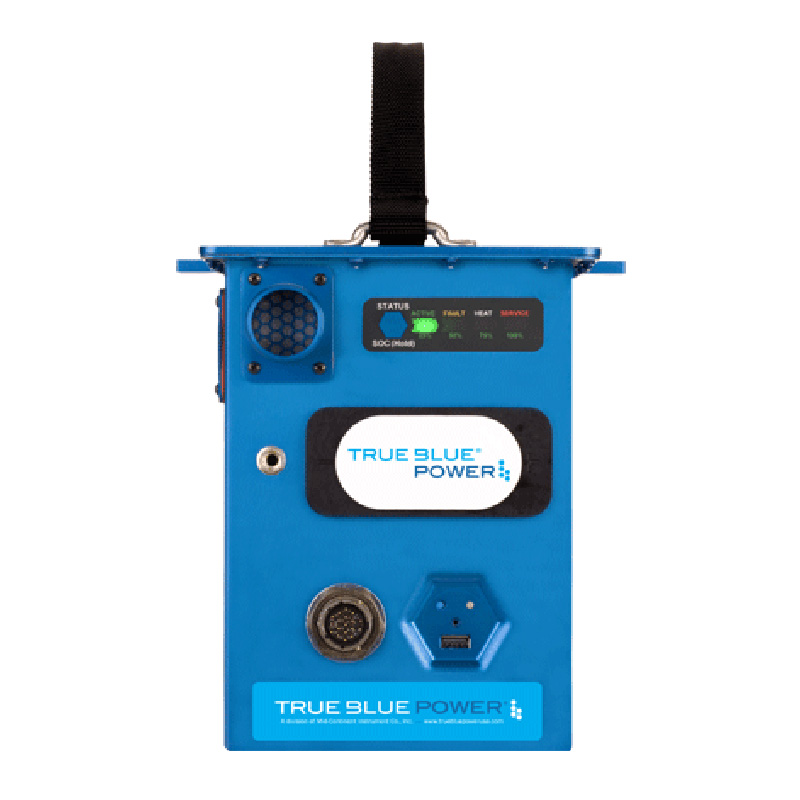

True Blue Power Battery Lithium-Ion Gen5 TB30 Serial Discharge 6430030-2

The True Blue Power Gen5 TB30 is a serial-discharge lithium-ion aircraft battery for 28 VDC-class electrical systems. Manufacturer part number 6430030-2, it provides a nominal output of 26.4 VDC and 30 Ah capacity at 23°C.

The Gen5 TB30 incorporates an internal Battery Management System (BMS) for battery monitoring and protection, together with a Built-In Test indicator for state-of-charge and state-of-health information. The manufacturer specifies on-condition maintenance and an automatic internal heater to support operation in low-temperature conditions.

• Model: Gen5 TB30
• Manufacturer part number: 6430030-2
• Configuration: Serial discharge
• Nominal output voltage: 26.4 VDC
• Nominal charge voltage: 28 VDC
• Nominal capacity: 30 Ah at 23°C
• Output current: 575 A continuous; 1,500 A maximum
• Operating temperature: -40°C to +70°C
• Case: Blue anodised aluminium
• Approximate dimensions: 318 × 218 × 224 mm (L × W × H)
• Mass: approximately 12.6 kg
• Manufacturer-stated certification: FAA TSO-C179b, Class A-4B; RTCA DO-311A, DO-160G and DO-178C DAL A

For installation, operation, charging, maintenance and handling requirements, consult the applicable approved aircraft data and the manufacturer documentation. The manufacturer’s FAA TSO status does not by itself confirm EASA approval or suitability for a particular aircraft installation.

Documentation: manufacturer product information and Gen5 TBX Series support manual.
