True Blue Power Battery Lithium-Ion TB17 On/Off Feature And Quick DisconnecT6430017-4

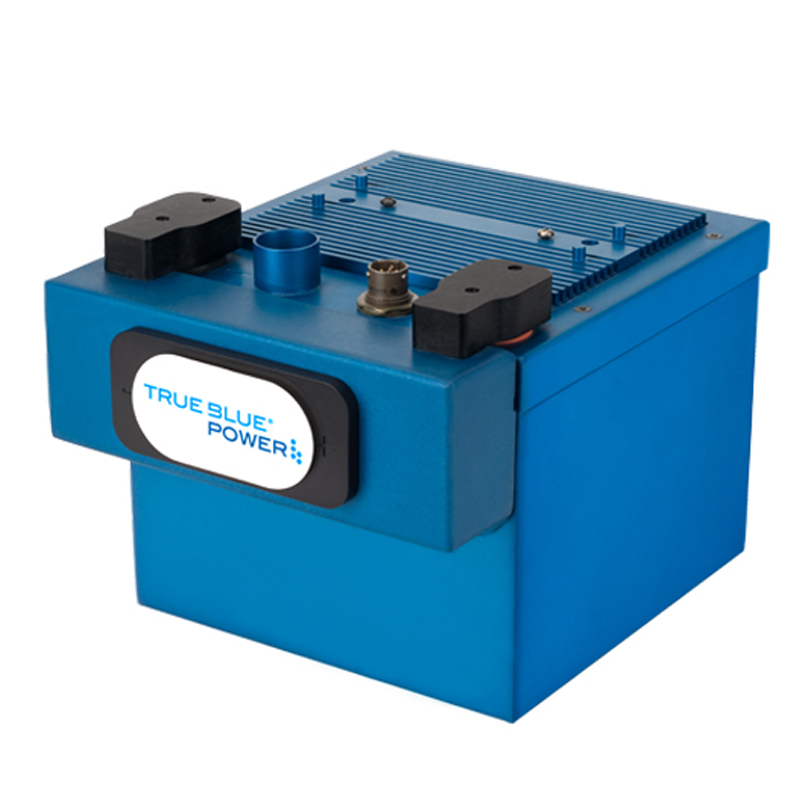

Image for illustration only. It may show a product series rather than the exact product offered.

True Blue Power Battery Lithium-Ion TB17 On/Off Feature And Quick DisconnecT6430017-4

Hazardous product
Hazardous material Special shipping rules and carrier restrictions may apply.
https://www.roctexo.com/web/image/product.template/133121/image_1920?unique=2442095
Part numbers : RX1-10-07536 , 6430017-4 , 10-07536
Unit of Measure: EA

24387.10 EUR / EA 24387.1 EUR 24,387.10 € excl. VAT

24387.10 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The True Blue Power TB17, manufacturer part number 6430017-4, is an advanced lithium-ion aircraft battery designed for engine-start applications. This configuration incorporates a heater ON/OFF feature and is supplied with an MS3509 quick-disconnect kit.

The TB17 provides 26.4 VDC nominal output and 17 Ah nominal capacity at 23°C. Its integrated battery-management functions include protection against overcharge, over-discharge, over-current, short circuit, over-temperature and under-temperature conditions, together with charge-current limiting.

  • Model: TB17
  • Manufacturer part number: 6430017-4
  • Output voltage: 26.4 VDC nominal
  • Charge voltage: 28 VDC nominal
  • Capacity: 17 Ah nominal at 23°C
  • Output current: 500 A continuous; 840 A maximum
  • Operating temperature: -40°C to +70°C
  • Heater ON/OFF feature
  • MS3509 quick-disconnect kit included
  • Anodised aluminium case
  • FAA TSO-C179b, Class A-4B; RTCA DO-311A and RTCA DO-160G stated by the manufacturer

Please refer to the current True Blue Power TB17 installation and operation documentation for installation, operational and continuing-airworthiness requirements.
