True Blue Power Battery Lithium-Ion 28 Watt TS60 Threaded 6430060-2

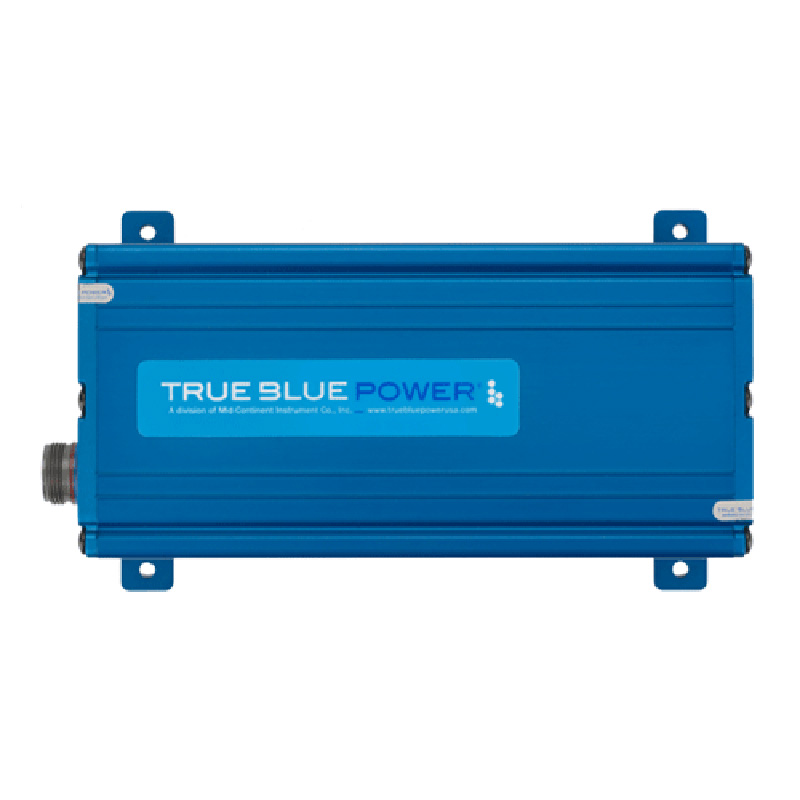

Image for illustration only. It may show a product series rather than the exact product offered.

True Blue Power Battery Lithium-Ion 28 Watt TS60 Threaded 6430060-2

Hazardous product
Hazardous material Special shipping rules and carrier restrictions may apply.
https://www.roctexo.com/web/image/product.template/133117/image_1920?unique=782191c
Part numbers : RX1-10-07532 , 6430060-2 , 10-07532
Unit of Measure: EA

12491.93 EUR / EA 12491.93 EUR 12,491.93 € excl. VAT

12491.93 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The True Blue Power TS60, manufacturer part number 6430060-2, is a lithium-ion emergency battery power supply for aircraft emergency lighting systems. It is designed to provide constant 6.6 VDC output following loss of aircraft electrical power and to recharge from aircraft power during normal operation.

This TS60-2 configuration combines a 28 Wh capacity with a 12-pin threaded connector and is identified by the manufacturer as a direct replacement for Honeywell Grimes 60-5025-( ) power supplies and battery assemblies.

  • Manufacturer part number: 6430060-2
  • Model: TS60-2
  • Battery technology: Advanced NanoPhosphate® lithium-ion
  • Capacity: 28 Wh
  • Input voltage: 17–32 VDC
  • Output: 6.6 VDC nominal, 7 A maximum
  • Connector: 12-pin threaded; mating connector P/N 9019011-2
  • Dimensions: approximately 66 x 222 x 136 mm (H x L x W)
  • Weight: 1.72 kg
  • Protection: overcharge, over-discharge, over-current, short-circuit and temperature monitoring
  • Certification stated by manufacturer: FAA TSO-C179b, Class A-3A; RTCA DO-311A and RTCA DO-160G qualified

For installation, operation and scheduled maintenance requirements, refer to the True Blue Power TS60 Installation Manual, Manual 9018972, Revision E.
