Radiant Fuel Gauge For Resistive Or Float Based Fuel

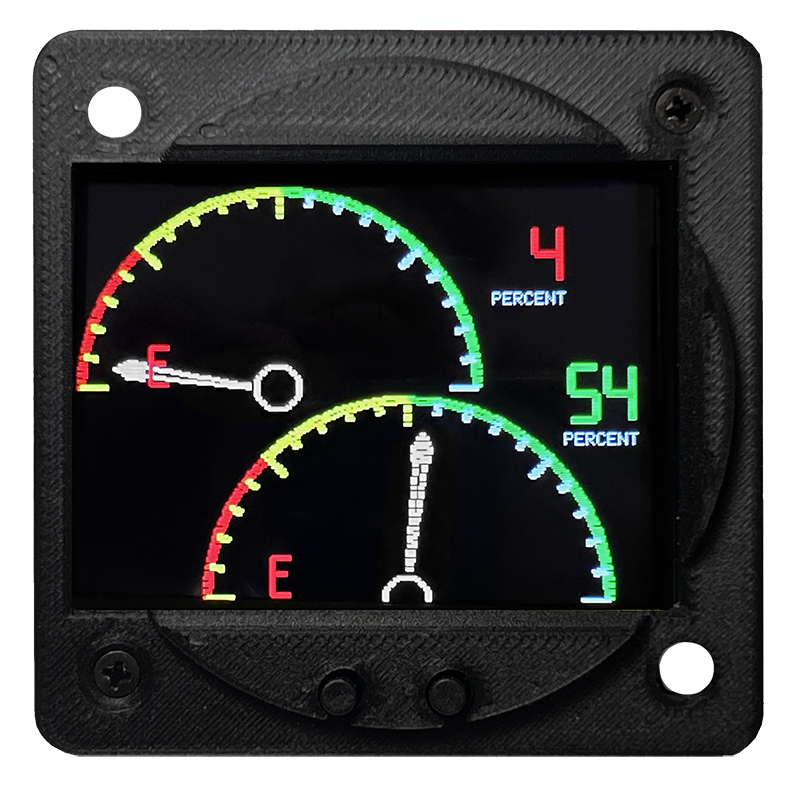

The Radiant RFGA-022R-GEN2 is a GEN-2 fuel gauge for aircraft installations using passive resistive fuel senders, commonly described as float-type senders. It supports display of fuel level for one or two tanks on a compact, sunlight-readable colour screen.

The display combines an analogue-style fuel dial, large digital fuel percentage, fuel quantity and recent fuel-level trend information, helping provide a clear view of current sender readings and their recent behaviour. Fuel quantity can be configured in litres, US gallons or Imperial gallons.

• Manufacturer part number: RFGA-022R-GEN2
• For passive resistive fuel senders connected to ground
• Single- or dual-tank display configuration
• User calibration with 2, 3 or 5 points per tank
• Supports normal or reverse-acting resistive sender curves when correctly calibrated
• Displays sender resistance in real time and can indicate open- or short-circuit sender conditions
• Sunlight-readable, high-contrast colour display with adjustable brightness

This instrument is not EASA/FAA approved. Radiant states that its instruments are not produced under TSO or PMA approval and are intended for experimental, ultralight and qualifying Light Sport Aircraft applications, subject to the applicable aircraft and installation requirements.

For installation, configuration and operating information, consult the Radiant General Instruments Manual.
