Dynon Universal Module Mounting Tray Kit For SV-HdX1100

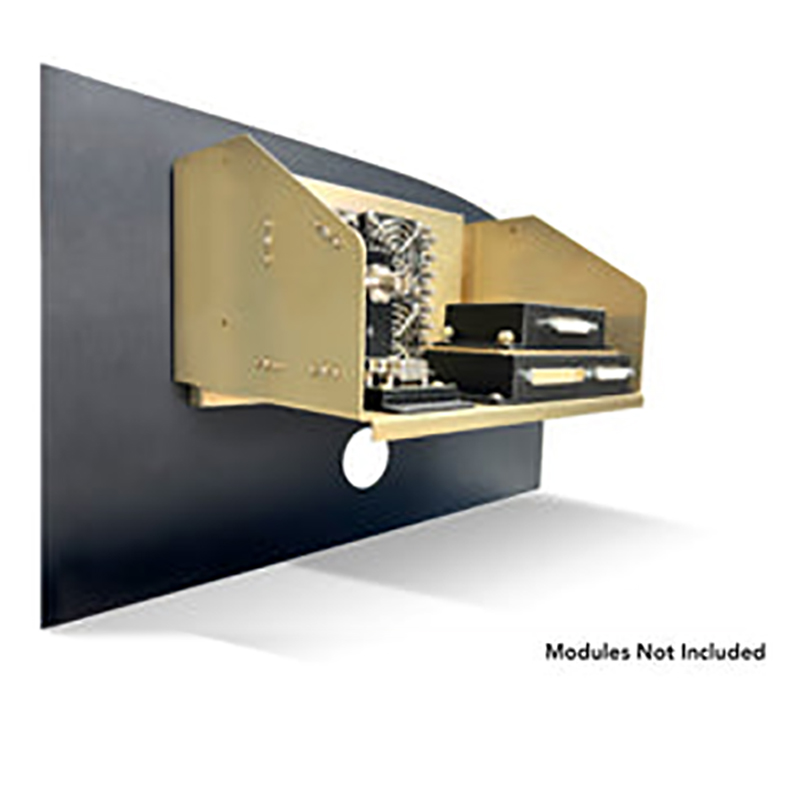

The Dynon Universal Module Mounting Tray Kit provides a structured mounting solution for commonly used SkyView electronic modules behind the instrument panel. Designed for SkyView HDX installations, it helps place supported equipment close to panel-mounted systems while allowing access through the display opening after the display is removed.

Manufacturer part number: 104071-000

The gold alodined aluminium tray is supplied with pre-installed nutplates and mounting hardware for the tray and directly mounted modules. It has provisions for the SkyView HDX1100 or HDX1200 display unit, SV-BAT-320 back-up battery, SV-ADSB-472 ADS-B IN receiver, SV-NET-HUB network hub, and either an SV-EMS-220 engine monitoring module or an SV-ADAHRS-200 ADAHRS module.

• For Dynon SkyView HDX systems only
• Not compatible with SkyView Classic, Touch, or SE systems
• Tray kit only; display units and electronic modules are not included
• Additional Dynon stacking kits may be required for selected multi-module configurations
• Panel attachment hardware should be selected in accordance with the applicable Dynon installation documentation and panel construction

Suitable for installers planning a neat, serviceable SkyView HDX module arrangement at the instrument panel. Verify installation clearances, module configuration, and mounting requirements against the current Dynon documentation before installation.
