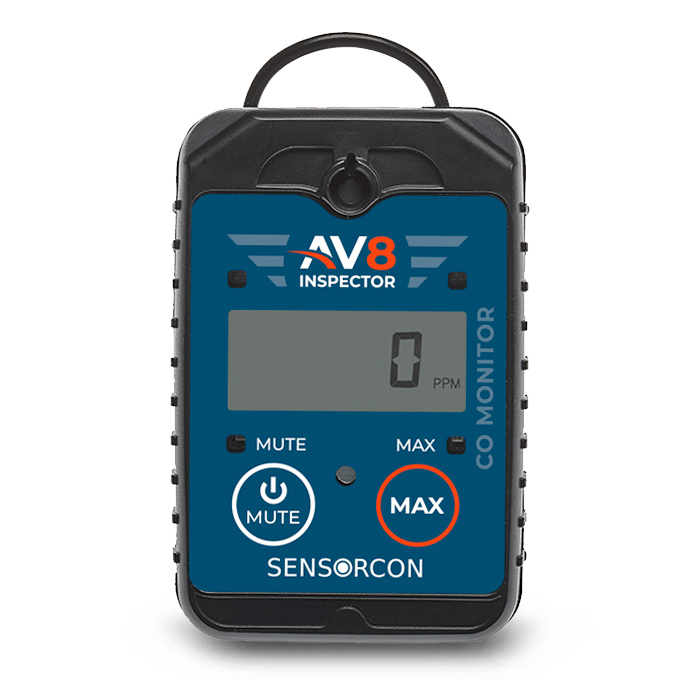

Sensorcon AV8 Inspector Portable Carbon Monoxide Monitor
Part Number(s): 10-07327, AV8-CO-01
Documents
Unit of Measure Name:
Units
Internal Reference:
RX1-10-07327
Overview
| In aviation, CO is commonly produced by equipment such as piston-driven aircraft, ground servicing equipment, and airside vehicles. Turbine engine aircraft exhaust and auxiliary power unit (APU) exhaust can also contribute to the accumulation of unsafe levels of CO. Being aware of the potential for carbon monoxide (CO) exposure and poisoning is crucial for eliminating safety hazards and preventing accidents. The AV8 Inspector’s advanced sensor technology allows for accurate readings of carbon monoxide concentrations, before it becomes a problem |
Features
- 2 Year Warranty
- Water Resistant
- Shock Proof
- Pre Set Low Alarm (35 ppm)
- Pre Set High Alarm (200 ppm)
- Visual Alarm
- Audio Alarm
Specifications
- Measuring Range: 0-500ppm
- Display Range: 0-1999ppm
- Resolution: 1ppm
- Accuracy: +/- 10% of reading at ambient conditions (0-500 ppm)
- Response time: (T90): < 20 seconds
- Size: ~3.2” x 2.2” x 0.9”
- Unit Weight: 4 ounces
- Battery Life: > 2 yrs (depending on alarm conditions)
- Battery Type: Panasonic CR123A
- Alarm setpoints: 35 ppm low, 200 ppm high
- Alarm types: Visual LCD/LED, Audible Buzzer (80-85dB), and
- Vibrate Mode (vibrate in AV8 Inspector Pro model only)
- Temperature Range : -4 to +122 °F (-20 to +50 °C)
- Humidity Range: 20%-90% RH continuous (0-99% intermittent)
- Sensor Type: electrochemical
- Steel alligator clip with lanyard loop
- Removable mount
