Ae One Axis Relay Board 10A 24V

Ae One Axis Relay Board 10A 24V

https://www.roctexo.com/web/image/product.template/65601/image_1920?unique=eca173c
Part numbers : RX1-10-07090 , 1RY10A24V , 10-07090
Unit of Measure: EA

35.89 EUR / EA 35.89 EUR 35.89 € excl. VAT

35.89 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The Aircraft Extras 1RY10A24V is a one-axis relay board designed for 24–28 V DC electrical systems. It incorporates two independent 10 A SPDT (Form C) relays, each providing normally open and normally closed contacts.

The relay contacts and coils are protected against inductive sparking associated with switched inductive loads, such as motors and solenoids. Accessible terminals support practical installation and maintenance access.

  • Manufacturer part number: 1RY10A24V
  • Roctexo part number: RX1-10-07090
  • Electrical system: 24–28 V DC
  • Relay rating: 10 A
  • Configuration: one-axis board with two independent SPDT (Form C) relays
  • Approximate dimensions: 76 × 35 × 29 mm

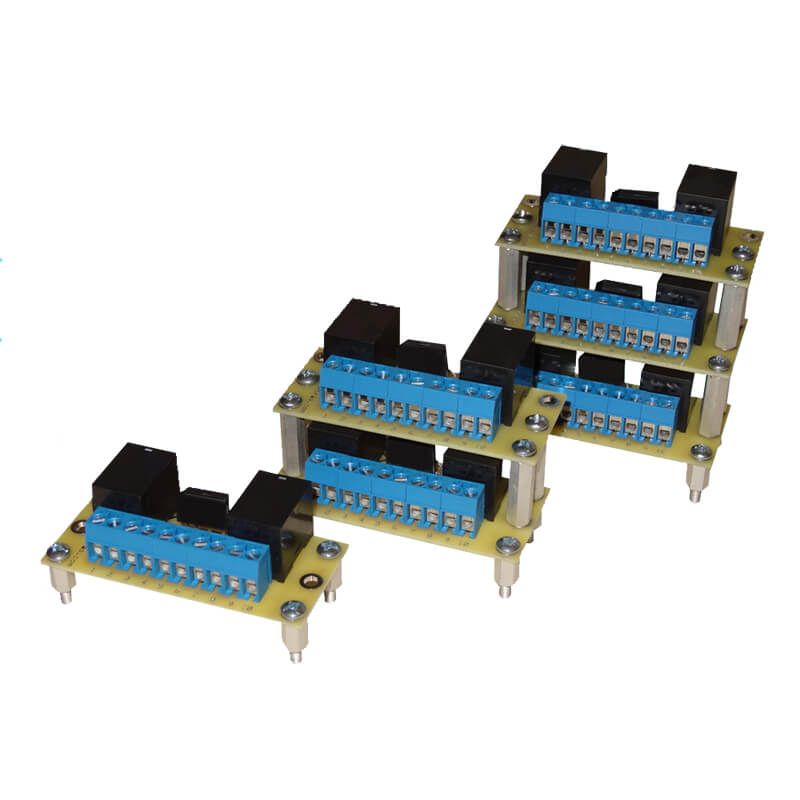

  • Manufacturer states that relay boards may be stacked up to three levels to help conserve panel space.

Manufacturer wiring diagrams are available for installation planning. Confirm electrical design, installation method and applicable airworthiness requirements before use.
