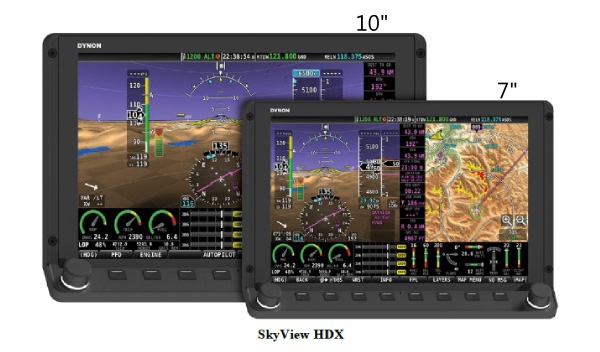

Dynon Skyview HDX 7 Display Only

Image for illustration only. It may show a product series rather than the exact product offered.

Dynon Skyview HDX 7 Display Only

https://www.roctexo.com/web/image/product.template/3281/image_1920?unique=c0fe76b
Part numbers : RX1-10-06237 , 102865-000 , 10-06237
Unit of Measure: EA

3320.05 EUR / EA 3320.05 EUR 3,320.05 € excl. VAT

3320.05 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Monday 2026-10-05
Order before 17:00 CET on Friday 2026-10-02
Up to 2 EA ready to ship on Thursday 2026-10-08
Order before 17:00 CET on Friday 2026-10-02
1 EA available on request, inbound freight fee of 60 EUR applies
Special order from vendor stock.

The Dynon SkyView HDX 7 Display Only is a 7.1-inch high-definition touchscreen display for the SkyView HDX avionics system. It combines an edge-to-edge touch interface with dedicated physical controls, including backlit controls and dual joystick knobs, to support clear and direct system operation.

The display provides a 1280 × 800-pixel LCD screen with LED backlighting. Dynon describes the HDX display range as having wide viewing angles and anti-reflective display properties. The robust metal-and-glass construction and angled control panel are designed for cockpit use.

  • Manufacturer part number: 102865-000
  • Display: 7.1-inch high-definition colour touchscreen
  • Resolution: 1280 × 800 pixels
  • Approximate dimensions: 194 × 142 × 80 mm (W × H × D)
  • Designed for integration with Dynon SkyView HDX system components
  • Display-only configuration; confirm the required harnesses, modules, software and installation hardware for the intended installation separately

For installation data and applicable system documentation, refer to Dynon’s SkyView HDX System Installation Manual. Installation eligibility and any aircraft approval requirements must be verified for the individual aircraft and configuration.
