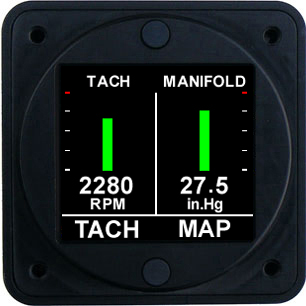

Aerospace Logic Manifold Pressure And Tachometer Slick Kit

The Aerospace Logic MT200KS is a combined manifold pressure and tachometer instrument kit configured for Slick/Unison type magnetos. It provides simultaneous analogue-style and digital indication of manifold pressure and engine RPM in a compact, sunlight-readable LCD instrument.

Designed to consolidate two key engine indications, the MT200KS also provides a graphical trend display and engine-time tracking. The manufacturer identifies this kit as comprising the MT200 instrument, A200-PMP manifold-pressure sensor and A200-HMS Hall-effect rotational-speed sensor for Slick magneto installations, together with installation hardware.

• Manufacturer part number: MT200KS
• Combined manifold pressure and tachometer indication
• Real-time analogue and digital displays
• Manifold pressure and RPM trend graph
• Engine-time display and tracking
• Sunlight-readable LCD with internal and external intensity-control options
• 6 to 36 VDC input; DB-25 interface connector
• Operating temperature: -15 °C to +55 °C continuous; -40 °C to +70 °C for up to one hour
• Approximate instrument dimensions: 62 × 62 × 24 mm
• Approximate instrument weight, excluding harness: 115 g

Manufacturer documentation lists TSO C45b and C49b compliance, as well as Canadian and FAA STC information. Installation eligibility and approval for a specific aircraft, including any requirements applicable to EU-registered aircraft, must be confirmed against current approved data and the applicable authority’s requirements.

Relevant documentation: Aerospace Logic MT200X documentation set.
