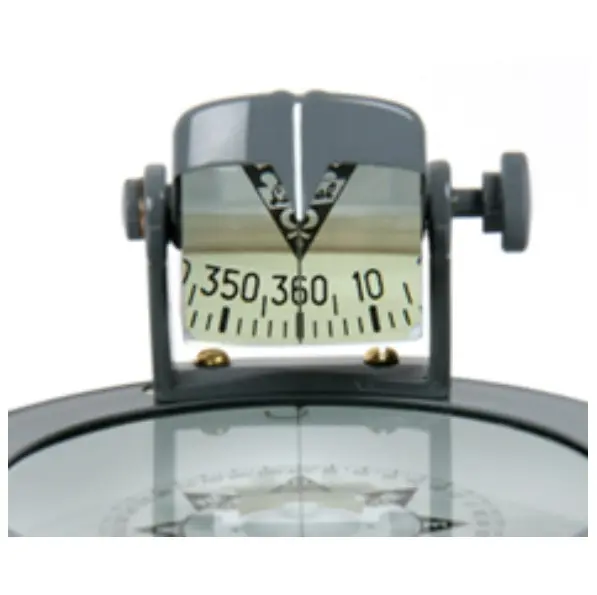

Sirs Master Compass 1686 Rev

https://www.roctexo.com/web/image/product.template/13607/image_1920?unique=954d0d0
Part numbers : RX1-10-04816 , 1686-REV , 10-04816
Unit of Measure: EA

3437.76 EUR / EA 3437.76 EUR 3,437.76 € excl. VAT

3437.76 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Not in stock
Available to order. Lead times vary.

The SIRS Model 1686-REV is a hand-held, reverse-read master compass intended for accurate heading observation during compass-swing procedures. Its reverse-read arrangement is designed to show the same heading sense as aircraft instruments when readings are taken from in front of the aircraft.

The compass is liquid-filled for card damping and is manufactured primarily from non-magnetic brass. A prism sight, sight wire and high-visibility compass card support precise alignment and heading reading. The unit is supplied with an impact-resistant ABS stowage case and calibration certificate.

  • Manufacturer model: 1686-REV
  • Reverse-read master compass configuration
  • Liquid-filled compass card damping
  • Prism sight and sight-wire reading arrangement
  • Predominantly non-magnetic brass construction
  • Supplied with ABS stowage case and calibration certificate
  • NATO stock number: 6605-99-460-5338

Suitable for maintenance organisations and operators requiring a dedicated portable reference compass for compass-swing work.

Contact Us

Terms and Conditions

Share

Overview

An accurate and sensitive instrument, capable of measuring small angular variations. This hand held NATO coded compass 6605-99-460-5338 is manufactured by SIRS and used in a wide range of applications. The compass is manufacture mostly from non-magnetic brass and liquid filled to provide card damping over a wide temperature range. A large high quality prism is used to magnify the card reading and accurate headings are taken through the prism sight line, a sight wire located above the compass card and the object being observed.

Typical uses include taking aircraft headings during a 'compass swing' procedure paticularly for small to medium sized aircraft. A special reverse-read version (1686REV ) is available to indicate the same headings as those read from the aircraft instruments during the compass swing operation, when viewing from the front of the aircraft. The compass is supplied with an impact resistant ABS stowage box and a calibration certificate. Subsequent calibrations can be performed by SIRS with a quick turn-round to ensure minimal loss of operation.

Features

  • Compact Modern and Low Weight Technology
  • Accurate and Simple Magnetic Correction
  • Silicone Card Damping
  • High Visibility Card
  • 3 year warranty
  • Optional NVG Illumination

Specifications

  • Warranty: 3 years
  • Dial Markings: Degrees
  • Accuracy: Better than 30 Minutes
  • Tilt: 15 Degrees
  • Friction: < 0.25 degrees
  • Operating Temp Range: +70°C to -32°C
  • Weight: 900g
