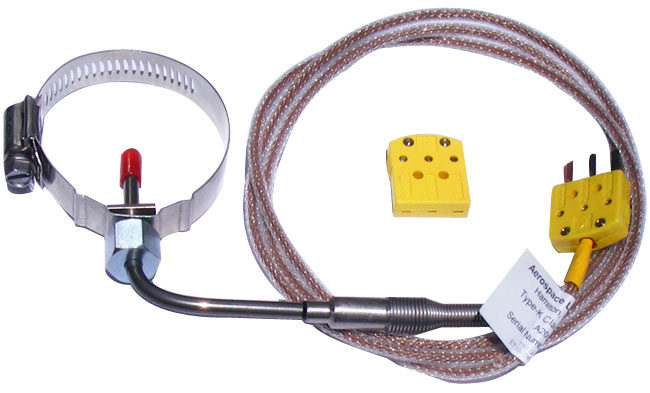

Aerospace Logic EGT Ungrounded 2-1/2 Clamp Type Probe A200-TeC25

The Aerospace Logic A200-TEC25 is an ungrounded Type-K, fast-response exhaust gas temperature (EGT) thermocouple probe kit. It is supplied with a 63.5 mm aircraft-grade 316 stainless-steel ring clamp and is intended for exhaust pipes with an outside diameter of approximately 41 to 64 mm.

The probe uses an Inconel 600 sheath and high-purity magnesium oxide insulation for high-temperature EGT measurement. Aerospace Logic states that the probe has been designed and tested for continuous operation above 1,200 °C. The kit is designed for use with Aerospace Logic exhaust-gas instruments.

• Manufacturer part number: A200-TEC25
• Roctexo part number: RX1-10-04800
• Ungrounded Type-K EGT thermocouple
• Inconel 600 probe sheath
• Approx. 1.22 m twisted, shielded high-temperature lead
• Male shielded thermocouple connector fitted
• 63.5 mm 316 stainless-steel ring clamp included

A female polarized, shielded mating connector for the instrument harness is not included. Installation should be carried out in accordance with the applicable Aerospace Logic instructions and the approved data for the aircraft and instrument system.
