VDO Fuel Sender 10-180 Ohms

VDO Fuel Sender 10-180 Ohms

https://www.roctexo.com/web/image/product.template/26834/image_1920?unique=4fd80ca
Part numbers : RX1-10-04788 , 226-002 , 10-04788
Unit of Measure: EA

62.99 EUR / EA 62.99 EUR 62.99 € excl. VAT

62.99 EUR / EA excl. VAT

Not Available For Sale

This combination does not exist.

Availability
Up to 1 EA ready to ship on Monday 2026-08-10
Order before 17:00 CET on Friday 2026-08-07

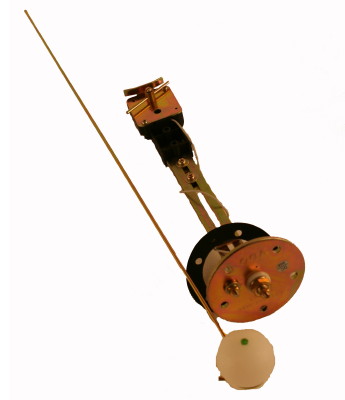

The VDO Fuel Sender, manufacturer part number 226-002, is a swing-arm fuel level sender with a 10–180 ohm resistance range. It provides 10 ohms with an empty tank and 180 ohms when the tank is full.

The sender is adjustable for fuel tank depths of approximately 152–584 mm and is specified for 12/24 VDC systems. It is intended for use with VDO 10–180 ohm fuel level gauges.

  • Manufacturer part number: 226-002
  • Type: Swing-arm fuel level sender
  • Resistance range: 10–180 ohms
  • Electrical system: 12/24 VDC
  • Adjustable tank depth range: approximately 152–584 mm
  • Supplied with float arm, gasket and hardware kit, and bolt-on installation kit

Please confirm the required electrical range, tank configuration, installation dimensions, and applicable airworthiness requirements before installation.
